General Information

ADI Part Number

XNP-8300RW

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

XNP-8300RW

Product Line

Wisenet

Product Model

XNP-8300RW

Product Name

6MP Network 30x IR PTZ with Built-in Wiper

Product Series

X series

Product Type

PTZ Security Cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

6MP

Field of View

Horizontal: 57.42°-2.19°, Vertical: 33.54°-1.2°

HD Recording

Yes

Lens Type

Varifocal

Maximum Aperture

f/4.56

Maximum Frame Rate

30 fps

Minimum Focal Length

5 mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

30x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

200 m

Certifications

Ingress Protection Rating

IP66

NDAA Compliant

Yes

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Color Supported

Color, Monochrome

Maximum Video Resolution

3328 x 1872

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

5-150 mm

Lens Included

Yes

Maximum Focal Length

150 mm

Minimum Aperture

f/1.6

Physical Characteristics

Color

White

Form Factor

Dome

Height

318.8 mm

Weight (Approximate)

5.40 kg

Width

184.9 mm

Power Description

Input Voltage

HPoE

Product Information

Diameter

4696.5 mm

Mount Type

Ceiling Mount, Corner Mount, Hanging Mount, Parapet Mount, Pole Mount, Wall Mount

Storage

Storage Type

Memory Card

Miscellaneous

Features

Auto Tracking, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Face Detection, Motion Detection, Privacy Masking, Shock Detection

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

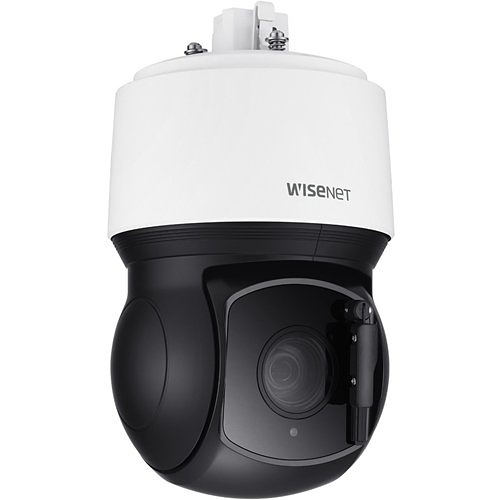

Hanwha XNP-8300RW X Series 6MP 30x IR PTZ Dome Camera with Built-In Wiper, 5-150mm Varifocal Lens
