General Information

ADI Part Number

AH5-2L

Brand Name

CDVI

Manufacturer

CDVI

Manufacturer Part Number

AH5-2L

Packaged Quantity

1

Product Model

AH5-2L

Product Name

L-bracket for AH5-22 housings

Product Series

AH5 HOUSINGS

Product Type

L-Bracket

Technical Information

Device Supported

AH5 Housing

Maximum Load Capacity

500 kg

Certifications

RoHS Compliant

Compliant

Physical Characteristics

Application/Usage

Access Control System, College, Commercial, Door, Public Building, School, Wooden Door

Color

Silver

Depth

50 mm

Form Factor

Surface Mount

Height

2000 mm

Material

Satin Anodised Aluminium

Product Material

Satin Anodised Aluminium

Thickness

50 mm

Weight (Approximate)

4.2 kg

Width

50 mm

Product Information

Finishing

Satin Anodised Aluminium

Length

50 mm

Mount Type

Door Mount

Warranty

Limited Warranty

10 Year

Miscellaneous

Compatibility

CDVI Magnet Transom Housings

AH5-22HM
AH5-22VM

Environmental Certification

CE, RoHS

Environmentally Friendly

Yes

Features

Vandal Resistant

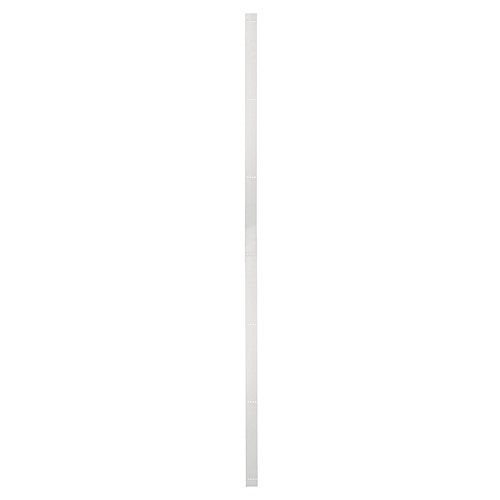

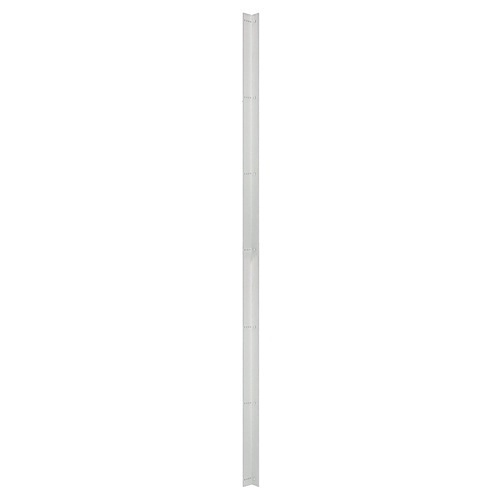

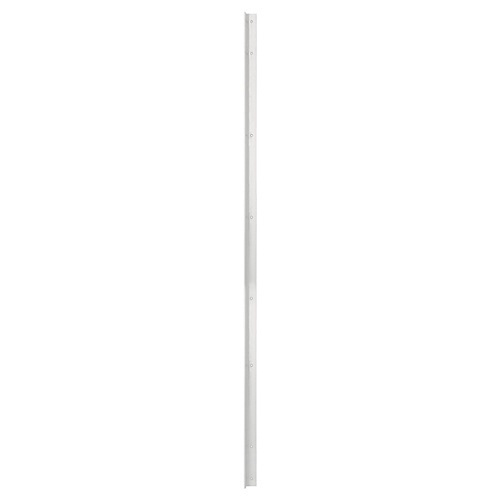

CDVI AH5-2L L-Bracket for 500kg Housing, 2m
