General Information

ADI Part Number

3.0C-H6SL-D1-IR

Brand Name

Avigilon Unity

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

3.0C-H6SL-D1-IR

Product Line

H6SL

Product Model

3.0C-H6SL-D1-IR

Product Name

H6SL Camera Line

Product Series

H6SL

Product Type

Network Camera

weight

0.80 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

3MP

Field of View

95° - 28°, 69° - 21°

Lens Type

Varifocal

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

3.4mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

3x

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP52, IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

2048 x 1536

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-10°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/7.5 Second

Minimum Illumination

0.02 lux

Shortest Shutter Speed

1/30000 Second

Interfaces/Ports

HDMI

No

Network (RJ-45)

Yes

Lens

Focal Length

3.4-10.5mm

Lens Included

Yes

Maximum Focal Length

10.50 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Depth

174 mm

Durability

Corrosion Resistant, Dust Resistant, Impact Resistant, Water Resistant, Wind Resistant

Form Factor

Dome

Height

165 mm

Width

165 mm

Power Description

Input Voltage

12V DC

Product Information

Mount Type

In-Ceiling Mount, Pendant Mount, Surface Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

3D Noise Filtering, Audio Compression, Automatic White Balance, Back Light Compensation (BLC), Day/Night, HTTPS Encryption, Microphone In, Password Protection, SD Card Local Storage, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor

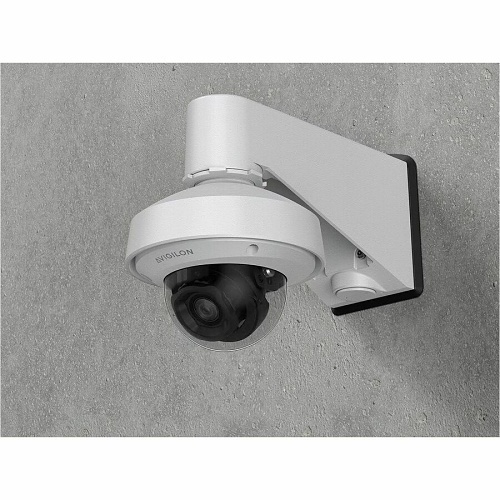

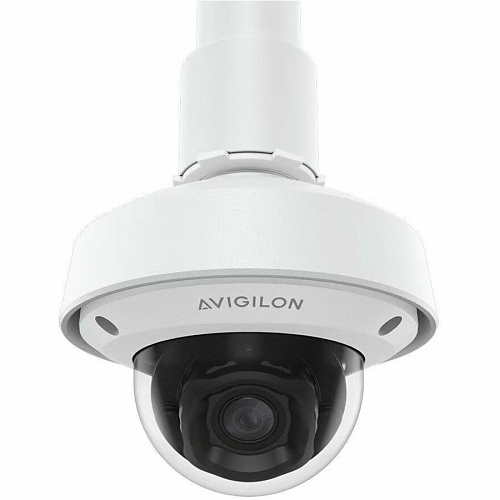

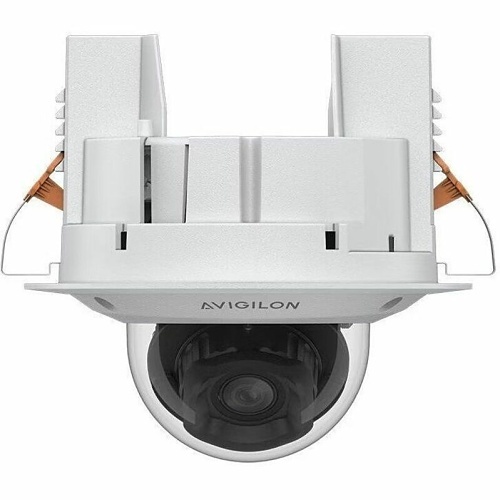

Avigilon Unity 3.0C-H6SL-D1-IR 3MP Indoor IP Dome Camera, 3.4-10.5mm Lens, IR 30M, IP67, White
