CDVI AH3-22VM 2m Architectural Housing for Single Door, 2x 300 kg Maglocks, Vertical Installation
Brand:
CDVI
ADI #:AH3-22VM
Model #: AH3-22VM

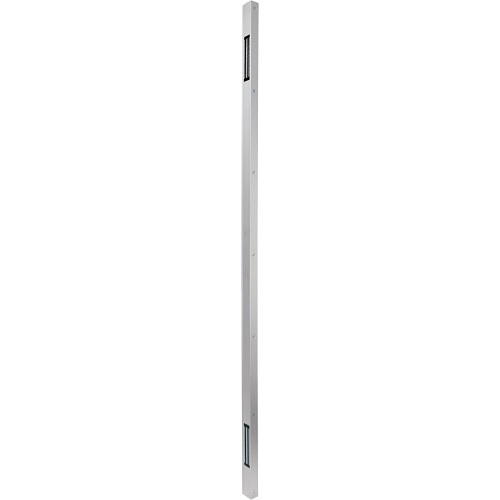

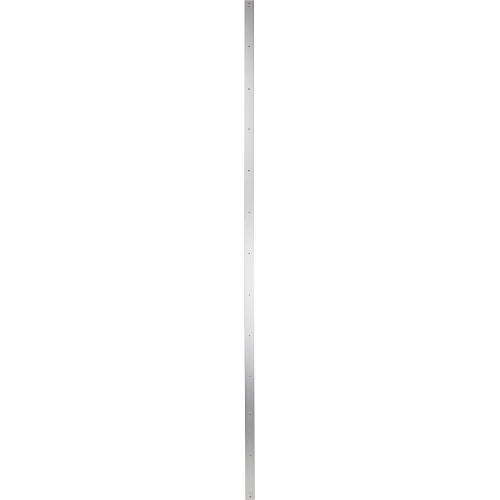

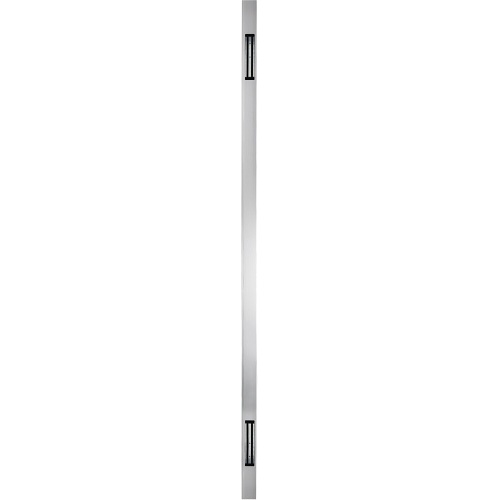

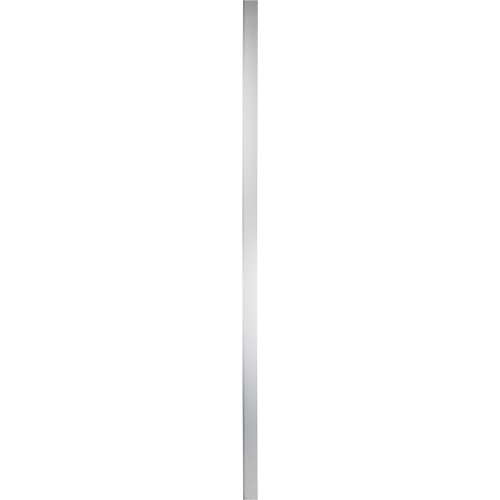

Name: CDVI AH3-22VM 2m Architectural Housing for Single Door, 2x 300 kg Maglocks, Vertical Installation
Surface mount architectural housing kit
Includes 2 x 300kg transom maglocks (V3E35R)
Forms part of the door frame and provides a tidy aesthetic finish
Product Overview
General Information
Main Features
Surface mount architectural housing kit
Includes 2 x 300kg transom maglocks (V3E35R)
Forms part of the door frame and provides a tidy aesthetic finish
Vertical installation
Designed to be easy to install
Can be sprayed in custom RAL colors on request
L-bracket available See AH3-2L
Information
Category : Access Control, Locking Devices, Magnetic Lock Parts, Products
Specifications
General Information
ADI Part Number
AH3-22VM
Brand Name
CDVI
Manufacturer
CDVI
Manufacturer Part Number
AH3-22VM
Product Model
AH3-22VM
Product Name
2-metre architectural housing for single door, 2 x 300kg maglocks, vertical installation
Product Type
Mounting Kit
Physical Characteristics
Depth
38.1 mm
Height
1990 mm
Material
Satin Anodized Aluminum
Weight (Approximate)
3.9 kg
Width
50.8 mm
Warranty
Limited Warranty
10 Year
Miscellaneous
Compatibility
Single door
Environmental Certification
CE, RoHS
Environmentally Friendly
Yes
