Adastra FH15V 15W Fire Rated Horn Speakers, Weatherproof, IP66, 5VB Fireproof ABS Material, EN54-24

Brand: Adastra
ADI #:FH15V Model #: 952.246UK  Name: Adastra FH15V 15W Fire Rated Horn Speakers, Weatherproof, IP66, 5VB Fireproof ABS Material, EN54-24
  • Power rms 8 Ohms 15W
  • Construction 5VB fire-rated ABS housing, stainless metal bracket
  • Tappings 1.9W, 3.8W, 7.5W, 15W (100V) and 8 Ohms
Image of FH15V

Product Overview

General Information

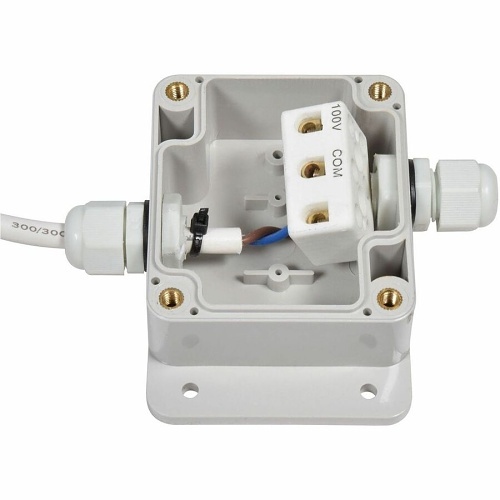

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance 8 Ohm or 100V operation with switchable volume tappings 70V settings also included. Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a stainless adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.

Main Features
  • Power rms 8 Ohms 15W
  • Construction 5VB fire-rated ABS housing, stainless metal bracket
  • Tappings 1.9W, 3.8W, 7.5W, 15W (100V) and 8 Ohms
  • Frequency response 300 Hz to 8 kHz
  • Dimensions 250 x 220 x 162mm
Information
Category : Products, PA Horns, Commercial Audio, Pro AV

Specifications

General Information

ADI Part Number
FH15V
Brand Name
Adastra
Manufacturer
The AVSL Group Ltd
Manufacturer Part Number
952.246UK
Product Model
FH15
Product Name
EN54-24 Speaker
Product Type
Speaker
Weight (Approximate) (g)
1530

Technical Information

Impedance
8 ohms
Impedance (Ohm)
8
Maximum Frequency Response (Hz)
8000
Minimum Frequency Response (Hz)
300

Audio

Maximum Frequency Response
8 kHz
Minimum Frequency Response
300 Hz
RMS Output Power
15W
RMS Output Power (W)
15

Physical Characteristics

Application/Usage
Commercial, Voice
Depth
162 mm
Depth (mm)
162
Durability
Fire Resistant, Weather Proof
Height
250 mm
Height (mm)
250
Weight (Approximate)
1.53 kg
Width
220 mm
Width (mm)
220

Miscellaneous

Environmental Certification
RoHs, WEEE
Environmentally Friendly
Yes
Package Contents
  • EN54-24 Fire Rated Horn Speakers
  • Hard-Wired Junction Box
  • Mounting Bracket & Screws
