General Information

ADI Part Number

16C-H5PRO-B

Brand Name

Avigilon Unity

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

16C-H5PRO-B

Product Line

H5A

Product Model

16C-H5PRO-B

Product Name

H5 PRO CAMERA

Product Series

H5 Pro

Product Type

Box Cameras

weight

500 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

16MP

Lens Type

Fixed

Maximum Aperture

F/1.4

Maximum Frame Rate

25 fps

Minimum Focal Length

27.2mm

Night Vision

No

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

5344 x 3008

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-25°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/7.5 Second

Minimum Illumination

0.004 lux

Shortest Shutter Speed

1/8000 Second

Interfaces/Ports

HDMI

No

Network (RJ-45)

Yes

Lens

Focal Length

27.2 mm

Lens Included

Yes

Maximum Focal Length

27.20 mm

Physical Characteristics

Color

Black

Durability

Water Resistant

Form Factor

Box Mount

Height

82 mm

Width

87 mm

Power Description

Input Voltage

12V DC, 24V AC

Product Information

Length

142 mm

Mount Type

Bottom Mount, Top Mount

Storage

Recording Formats

5K

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

REACH, RoHS

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Audio Compression, Automatic White Balance, Back Light Compensation (BLC), Face Detection, Motion Detection, Motion Tracking, Privacy Protection, Video Content Analytics, Wide Dynamic Range

Indoor/Outdoor

Indoor, Outdoor

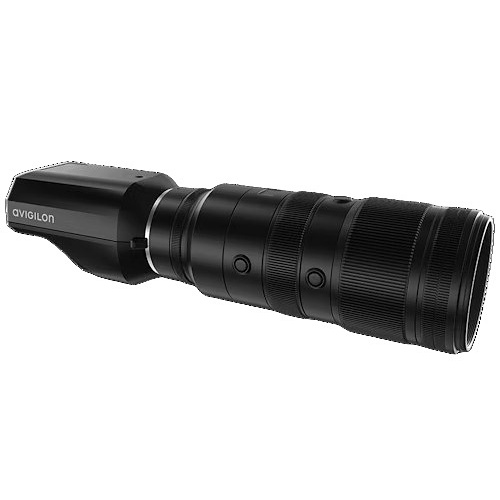

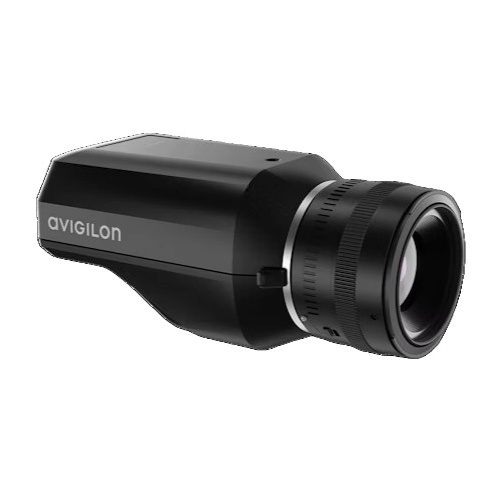

Avigilon Unity 16C-H5PRO-B H5 Pro Series, WDR IP66 16MP, IP Box Camera, Black
