Dahua DH-HAC-HDBW1200RAP-Z-2712-S6 2MP Outdoor Vandal Resistant 4 in 1 Dome Camera, 2.7-12mm Lens, IP67, IK10

Brand: Dahua Technology
ADI #:HHDBW1200RAPZ27S6 Model #: DH-HAC-HDBW1200RAP-Z-2712-S6  Name: Dahua DH-HAC-HDBW1200RAP-Z-2712-S6 2MP Outdoor Vandal Resistant 4 in 1 Dome Camera, 2.7-12mm Lens, IP67, IK10
  • Max. 30 fps at 1080p
  • Smart IR Illumination
  • 60m illumination distance

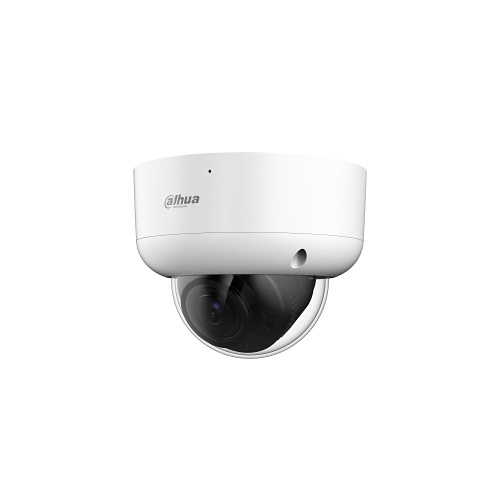

Image of HHDBW1200RAPZ27S6

Product Overview

General Information

The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-color and starlight, providing various solutions for different scenarios.

Main Features
  • Max. 30 fps at 1080p
  • Smart IR Illumination
  • 60m illumination distance
  • Super Adapt
  • Built-in mic
  • 2.7-12mm motorized lens
  • CVI/CVBS/AHD/TVI switchable
  • IP67, IK10, 12V DC
Information
Category : Dome Cameras, HDoC Cameras, Products, Video Surveillance

Specifications

General Information

ADI Part Number
HHDBW1200RAPZ27S6
Brand Name
Dahua Technology
Manufacturer
Zhejiang Dahua Technology Co., Ltd.
Manufacturer Part Number
DH-HAC-HDBW1200RAP-Z-2712-S6
Product Model
DH-HAC-HDBW1200RAP-Z-2712-S6
Product Name
2MP IR HDCVI Motorized Vari-Focal Vandal-proof Dome Camera
Product Type
Dome Camera

Technical Information

Effective Camera Resolution
2MP
Field of View
Horizontal: 28.3°–98.2°; Vertical: 15.8°–51.9°; Diagonal: 32.1°–116.7°
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30 fps
Minimum Focal Length
2.7 mm
Night Vision
Yes
Wide Dynamic Range
Yes

Certifications

Ingress Protection Rating
IP67

Display & Graphics

Maximum Video Resolution
1920 x 1080

Environmental Conditions

Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
≤ 95%

Exposure

Longest Shutter Speed
1/25 s
Minimum Illumination
0.01 lux|0.001 lux|0 lux
Shortest Shutter Speed
1/100000 s

Lens

Focal Length
2.7-12 mm
Lens Included
Yes
Maximum Focal Length
12 mm

Physical Characteristics

Color
White
Durability
Vandal Resistant
Weight (Approximate)
630 g

Power Description

Input Voltage
12V DC
Power Source
DC

Product Information

Mount Type
Wall Mount

Video

Horizontal Resolution
1920

Miscellaneous

Impact Protection Rating
IK10
Indoor/Outdoor
Outdoor
