General Information

ADI Part Number

4.0C-H5ARGDPTZDP36

Brand Name

Avigilon Unity

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

4.0C-H5A-RGDPTZ-DP36

Product Line

H5A

Product Model

4.0C-H5A-RGDPTZ-DP36

Product Name

H5A Rugged Ptz Camera

Product Series

H5A

Product Type

Network Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

69.7° - 2.2° / 42.8° - 1.3°

HD Recording

Yes

Lens Type

Varifocal

Maximum Aperture

f/3.8

Maximum Frame Rate

30 fps

Minimum Focal Length

4.40 mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

36x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

100 m

Certifications

Ingress Protection Rating

IP66, IP67, IP68

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Color Supported

Colour, Monochrome

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

65°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/1 Second

Minimum Illumination

0.03 lux

Shortest Shutter Speed

1/10000 Second

Interfaces/Ports

HDMI

No

Network (RJ-45)

Yes

Lens

Focal Length

4.4-88 mm

Lens Included

Yes

Maximum Focal Length

88 mm

Physical Characteristics

Color

Silver

Color Family

Silver

Durability

Corrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Water Resistant, Wind Resistant

Form Factor

PTZ

Height

406 mm

Weight (Approximate)

7.10 kg

Power Description

Input Voltage

100V AC, 24V AC, 24V DC

Product Information

Diameter

240 mm

Mount Type

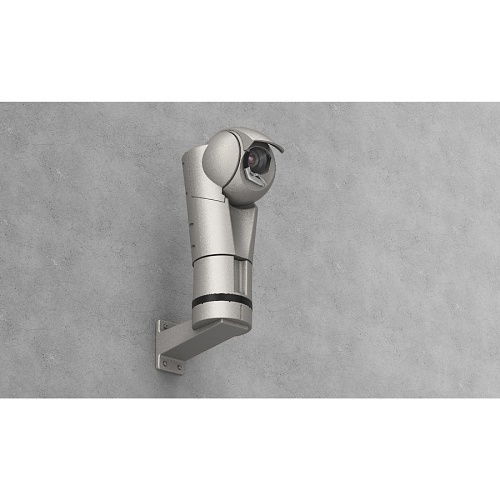

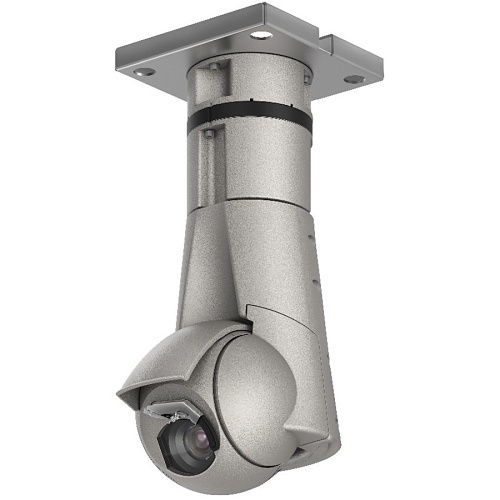

Bracket Mount, Pedestal Mount, Pendant Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Video

Horizontal Resolution

3840

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

3D Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Electronic Image Stabilization, Motion Detection, PTZ, Rugged Design, SD Card Local Storage

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

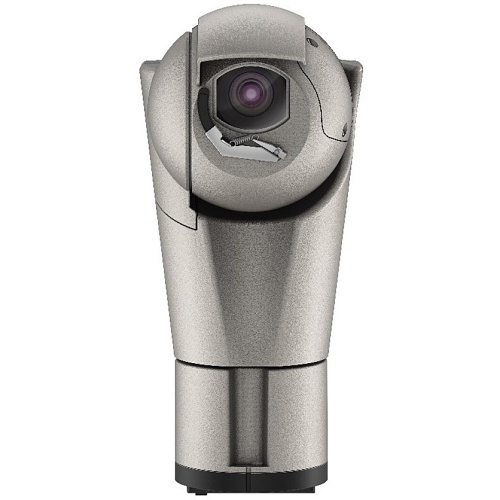

Avigilon Unity H5A-RGDPTZ-DP H5A Series IP68 4MP IP PTZ Camera, 4.4-88mm Varifocal Lens, WDR, 36x Optical Zoom, Silver
