General Information

ADI Part Number

2.0C-H6A-PTZ-DC30

Brand Name

Avigilon Unity

Manufacturer

Avigilon Unity

Manufacturer Part Number

2.0C-H6A-PTZ-DC30

Product Model

2.0C-H6A-PTZ-DC30

Product Name

CAM, H6A PTZ, In-Ceiling, 2MP, 30X

Product Type

Dome Camera

Technical Information

Effective Camera Resolution

2MP

Field of View

Horizontal: 58.1-2.3°, Vertical: 34.8-1.4°

Lens Type

Varifocal, Zoom

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

6.5 mm

Optical Zoom

30x

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

122°C

Minimum Operating Temperature

14°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

1/1 s

Minimum Illumination

0.1 lux|0.06 lux

Shortest Shutter Speed

1/10000 s

Lens

Focal Length

6.5-162.5 mm

Lens Included

Yes

Maximum Focal Length

162.5 mm

Minimum Aperture

f/4.8

Physical Characteristics

Height

225 mm

Weight (Approximate)

3.59 kg

Width

225 mm

Power Description

Input Voltage

24V AC, 24V DC

Product Information

Length

264 mm

Video

Horizontal Resolution

1920

Miscellaneous

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

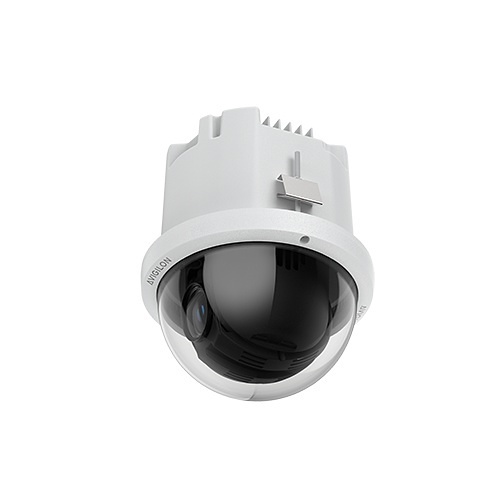

Avigilon Unity 2.0C-H6A-PTZ-DC30 2MP H6A PTZ Camera, In-Ceiling
