General Information

ADI Part Number

HME1809THAPV3

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DH-HAC-ME1809THP-A-PV-0360B

Product Line

TiOC

Product Model

DH-HAC-ME1809TH-A-PV

Product Name

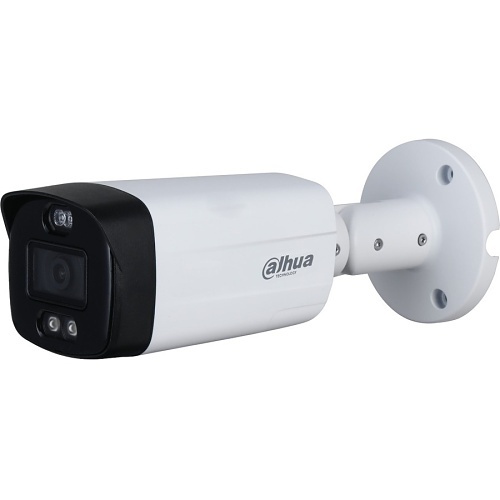

4K HDCVI Full-Color Active Deterrence Fixed Bullet Camera

Product Series

Active Deterrence

Product Type

Bullet Cameras

Technical Information

Connectivity Technology

Wired

Field of View

H: 89°; V: 46°; D: 105°

HD Recording

Yes

Lens Mount Type

M12-mount

Lens Type

Fixed

Maximum Aperture

F/1.6

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Colour

Number of IR LEDs

2

Video Signal Format

PAL

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Shortest Shutter Speed

1/100000 Second

Lens

Focal Length

3.6 mm

Lens Included

Yes

Maximum Focal Length

3.60 mm

Physical Characteristics

Color

White

Color Family

White

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Weight (Approximate)

440 g

Power Description

Input Voltage

12V DC

Power Source

DC

Product Information

Diameter

90.7 mm

Mount Type

Ceiling Mount, Junction Box Mount, Pole Mount, Vertical Mount

Storage

Recording Formats

4K

Video

Analog Video Signal Format

AHD, CVI, HDCVI, HDoC, TVI

Miscellaneous

Features

2D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Ingress Protection, Mirror, Privacy Masking

Indoor/Outdoor

Indoor, Outdoor

Dahua HAC-ME1809TH-A-PV Active Deterrence, HDCVI IP67 4K 3.6mm Fixed Lens, IR 40M HDoC Bullet Camera, White
