General Information

ADI Part Number

HME1509HPAPV28S2

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DHHACME1509HPAPV0280BS2

Product Line

Active Deterrence

Product Model

HAC-ME1509H-A-PV

Product Name

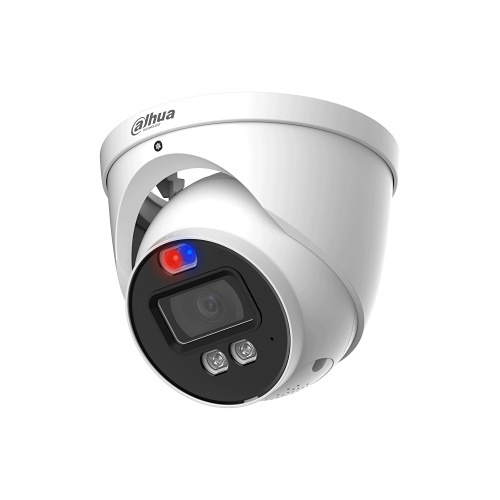

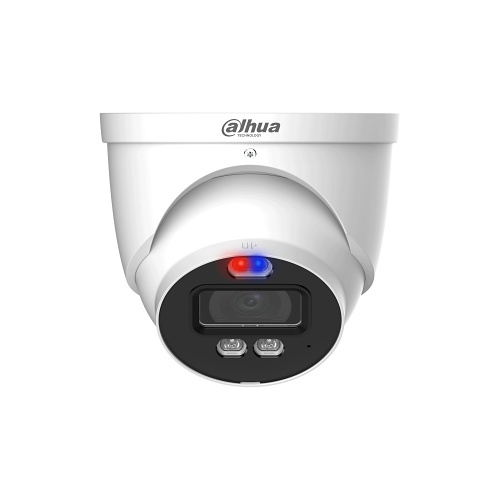

5MP Smart Dual Light Active Deterrence HDCVI Eyeball Camera

Product Type

Surveillance Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

H: 111°; V: 57°; D: 131°

HD Recording

Yes

Lens Mount Type

M12-mount

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8 mm

Night Vision

Yes

Night Vision Type

Infrared/Color

Number of IR LEDs

2

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 mm

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2880 x 1620

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.001 lux|0.0001 lux|0 lux

Shortest Shutter Speed

1/100000 Second

Lens

Focal Length

2.8-3.6 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

Blue, Grey, Red, White

Durability

Dust Proof, Water Proof

Form Factor

Eyeball

Weight (Approximate)

700 g

Power Description

Input Voltage

12V DC

Power Source

DC

Product Information

Diameter

122 mm

Mount Type

Ceiling Mount, Junction Box Mount, Pole Mount, Vertical Mount, Wall Mount

Video

Analog Video Signal Format

AHD, CVBS, CVI, HDCVI, TVI

Horizontal Resolution

2880

Miscellaneous

Features

Auto Gain Control, Automatic White Balance, Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Mirror, Noise Reduction, Privacy Masking, White Balance, Wide Dynamic Range

Indoor/Outdoor

Outdoor

Dahua DH-HAC-ME1509HP-A-PV-0280B-S2 5MP Smart Dual Light Active Deterrence HDCVI Bullet Camera, Grey
