General Information

ADI Part Number

311313539

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2043G2-IU(4MM)

Product Model

DS-2CD2043G2-IU(4MM)

Product Name

4 MP AcuSense Fixed Bullet Network Camera

Product Series

Pro

Product Type

Network Camera

weight

490 g

Technical Information

Effective Camera Resolution

4MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95% or less (non-condensing)

Exposure

Longest Shutter Speed

1/100000 Second

Minimum Illumination

0.005 lux

Shortest Shutter Speed

1/3 Second

Lens

Focal Length

2.8 mm

Maximum Focal Length

2.8 mm

Physical Characteristics

Durability

Dust Resistant

Power Description

Input Voltage

12V DC

Product Information

Diameter

70 mm

Mount Type

M12-Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE, REACH, RoHS, WEEE

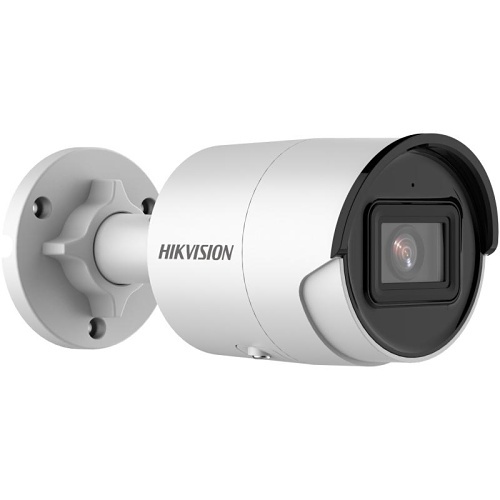

Hikvision DS-2CD2043G2-IU(4MM) Pro Series 4MP AcuSense Bullet IP Camera, 4mm Fixed Lens
