General Information

ADI Part Number

311312372

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

iDS-2CD7AC5G0-IZHS(8-32mm)

Product Line

DeepinView

Product Model

IDS-2CD7AC5G0-IZHS(8-32MM)

Product Name

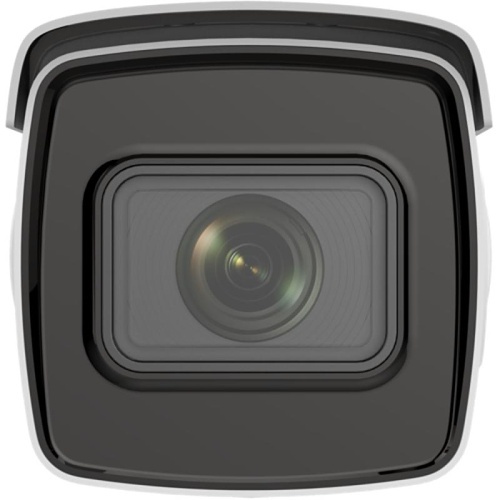

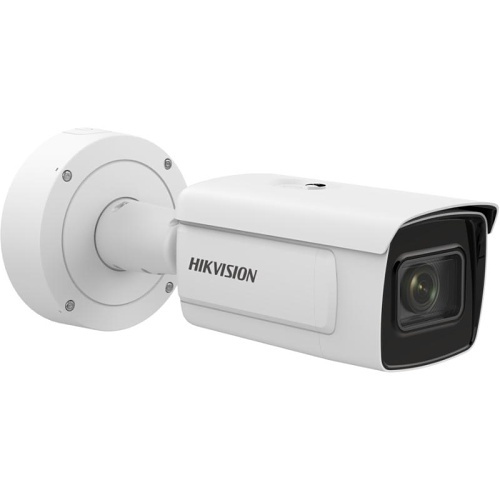

12MP DeepinView Moto Varifocal Bullet Camera

Product Series

7 Series

Product Type

Bullet Cameras

weight

1.92 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

12MP

Field of View

Diagonal: 51.47° to 17.8°, Horizontal: 40.2° to 14.4°, Vertical: 29.6° to 10.8°

Lens Type

Varifocal

Maximum Aperture

f/1.7

Maximum Frame Rate

30 fps

Minimum Focal Length

8mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

4.3x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

100 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

4000 x 3000

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1 s

Minimum Illumination

0.009 lux|0.0009 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

8-32 mm

Lens Included

Yes

Maximum Focal Length

32 mm

Minimum Aperture

f/1.73

Physical Characteristics

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

144 mm

Length

347 mm

Mount Type

Corner Mount, Pole Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE-ROHS, REACH, WEEE

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Face Detection, Heater, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Tampering Alarm

Impact Protection Rating

IK10

Hikvision IDS-2CD7AC5G0-IZHS(8-32MM) 12MP DeepinView Bullet Camera, 8-32mm Moto Varifocal Lens, IP67, IK10
