General Information

ADI Part Number

WV-S8544LG

Brand Name

i-PRO

Manufacturer

Panasonic

Manufacturer Part Number

WV-S8544LG

Product Model

WV-S8544LG

Product Name

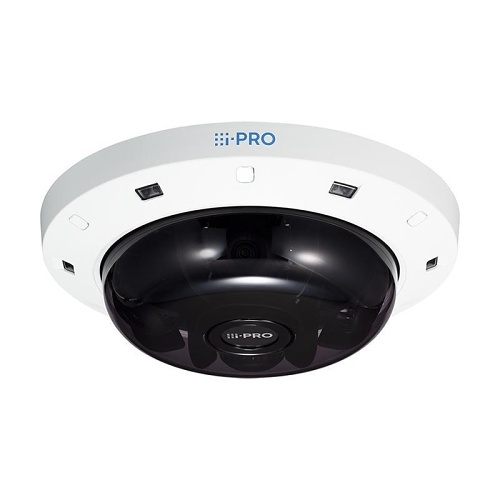

WV-S8544LG Industry thinnest multi-directional cameras with AI Engine

Product Type

Multi-Sensor

weight

3.3 kg

Technical Information

Effective Camera Resolution

4MP

Field of View

Horizontal, Vertical

Lens Type

Optical Zoom

Maximum Aperture

f/1.3 Tele

Maximum Frame Rate

30 fps

Minimum Focal Length

2.9mm

Night Vision

Yes

Optical Zoom

2.5x

Video Formats

H.264, H.265, MJPEG

Video Resolution

2688 x 1520

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

10-100%

Exposure

Longest Shutter Speed

16/30 Second

Minimum Illumination

0.053 lux|0.59 lux|0.85 lux

Shortest Shutter Speed

1/10000 Second

Lens

Focal Length

2.9-7.3mm

Lens Included

Yes

Maximum Focal Length

7.3 mm

Minimum Aperture

f/1.2 Wide

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Dust Resistant, Shock Resistant, Water Resistant, Wind Resistant

Height

90 mm

Power Description

Input Voltage

54V DC

Product Information

Diameter

300 mm

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Environmental Certification

CE, FCC, UL

Environmentally Friendly

Yes

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

i-PRO WV-S8544LG 4x4MP (16MP) Outdoor Multi-Directional IP Camera with AI Engine, 2.9-7.3mm Lens, 2.5x
