General Information

ADI Part Number

QNV-C6083R

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

QNV-C6083R

Product Model

QNV-C6083R

Product Name

2MP AI IR Vandal Dome Camera

Product Series

Q series

Product Type

Camera

weight

850 g

Technical Information

Effective Camera Resolution

2MP

Field of View

Horizontal: 102° to 32.2° Vertical: 54.2° to 18.3° Diagonal: 119° to 36.7°

Lens Type

Varifocal

Maximum Aperture

f/3.1

Maximum Frame Rate

30 fps

Minimum Focal Length

3.2mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

3.2x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-40°C

Operating Humidity

0-95%

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.04 lux|0.004 lux

Shortest Shutter Speed

1/25000 Second

Lens

Focal Length

3.2-10.2 mm

Lens Included

Yes

Maximum Focal Length

10.2 mm

Minimum Aperture

f/1.6

Physical Characteristics

Color

White

Form Factor

Dome

Product Information

Diameter

104 mm

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE

Environmentally Friendly

Yes

Features

Day and Night (ICR), WDR (120dB), H.265, H.264, MJPEG codec supported, Max. 2MP resolution, Micro SD/SDHC/SDXC 1 slot 256GB, Multiple streaming (up to 5 profiles)

Impact Protection Rating

IK10

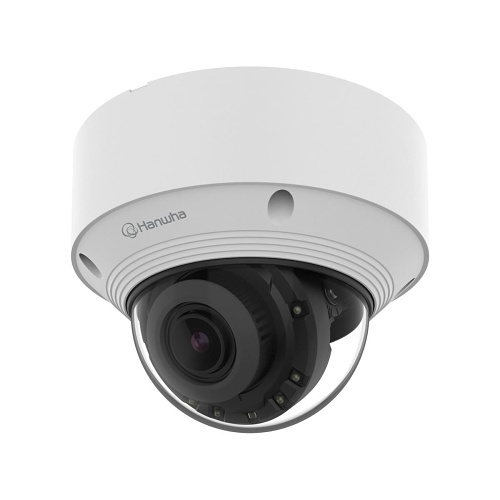

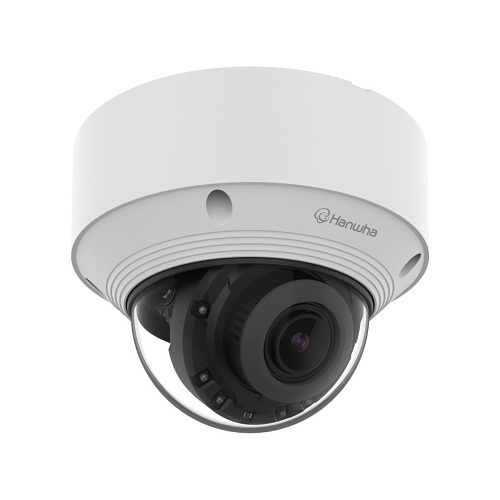

Hanwha QNV-C6083R 2MP AI IP Vandal Dome Camera, 3.2-10.2mm Motorized Varifocal Lens, IR 40m, IP66, IK10
