General Information

ADI Part Number

XNP-C7310R

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

XNP-C7310R

Product Model

XNP-C7310R

Product Name

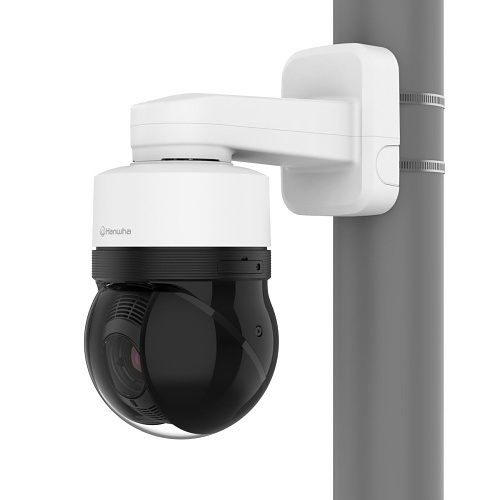

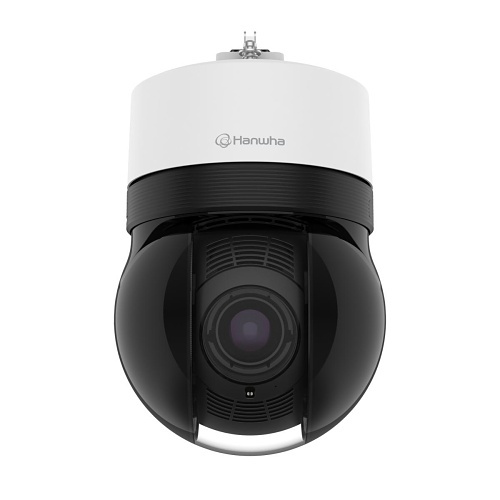

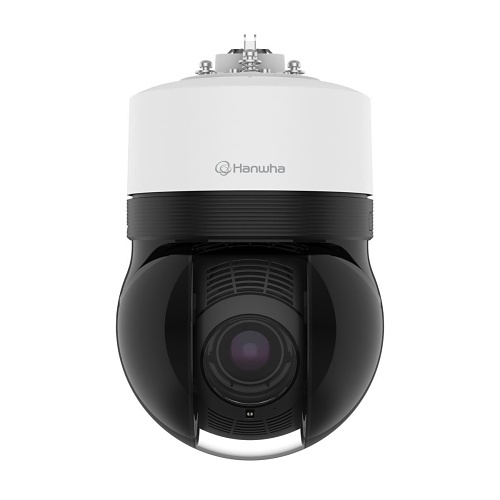

XNP-C7310R 4MP 31x AI IR PTZ Camera

Product Series

X series

Product Type

Network Camera

weight

4.40 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

H : 59.4°(Wide)~2.54°(Tele), V : 35.8°(Wide)~1.49°(Tele), D : 68.2°(Wide)~2.95°(Tele)

Lens Type

Varifocal

Maximum Aperture

f/1.36

Maximum Frame Rate

60 fps

Minimum Focal Length

6.9mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

31x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

299.92 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2592 x 1520

Environmental Conditions

Maximum Operating Temperature

74°C

Minimum Operating Temperature

-50°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0.04 lux|0.004 lux|0 lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

6.91-214.7 mm

Lens Included

Yes

Maximum Focal Length

214.70 mm

Minimum Aperture

f/4.6

Physical Characteristics

Color

White

Form Factor

Dome

Product Information

Diameter

188 mm

Storage

Storage Type

Memory Card

Miscellaneous

Features

Built-in IR LED, Day/Night, Defog, Digital Image Stabilization, Gain Control, Motion Detection, Password Protection, Privacy Masking, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Hanwha XNP-C7310R 4MP IP PTZ AI Focus Camera IR300m
