General Information

ADI Part Number

WV-X25580-F2LN2V

Brand Name

i-PRO

Manufacturer

Panasonic

Manufacturer Part Number

WV-X25580-F2LN2V

Product Model

WV-X22500-V3L

Product Name

WV-X22500-V3L Network Camera

Product Type

Dome

weight

1.9 kg

Technical Information

Effective Camera Resolution

5MP

Field of View

Horizontal, Vertical

Maximum Aperture

f/2.2

Maximum Frame Rate

30 fps

Minimum Focal Length

2.3mm

Night Vision

Yes

Night Vision Type

Infrared (IR)

Optical Zoom

1x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

21 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Environmental Conditions

Maximum Operating Temperature

140°F

Minimum Operating Temperature

-40°F

Operating Humidity

10-100%

Exposure

Longest Shutter Speed

16/25 Second

Minimum Illumination

0.08|0.11|0.07|0 lux

Shortest Shutter Speed

1/10000 Second

Lens

Focal Length

2.3mm

Physical Characteristics

Color

Silver

Power Description

Input Voltage

12V DC

Warranty

Limited Warranty

3-Year

Miscellaneous

Environmental Certification

CE, c-UL (CSA C22.2 No.62368-1), EN55032 ClassA, EN55035, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, IEC62368-1, UL (UL62368-1)

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

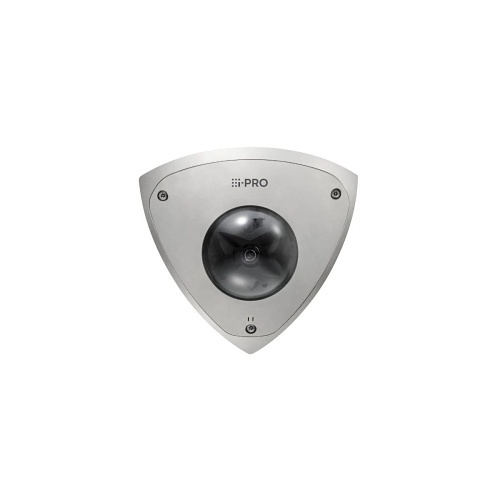

i-PRO WV-X25580-F2LN2V 5MP AI Enabled Outdoor Corner Dome IP Camera
