General Information

ADI Part Number

WBXML24

Brand Name

Capture by ADI

Manufacturer

W Box Technologies

Manufacturer Part Number

WBXML24

Product Line

Pro-Grade

Product Model

WBXML24

Product Name

Full HD Pro-Grade LED Colour Monitor

Product Type

Video Monitors

Technical Information

Backlight Technology

LED

Panel Technology

In-plane Switching (IPS) Technology

Response Time

5 ms GTG

Screen Size Class

24"

Viewable Screen Size

23.6"

Audio

Number of Speakers

2

Speakers

Yes

Certifications

CE Marking

Yes

RoHS Compliant

Compliant

Display & Graphics

Number of Screens

1

Pixel Pitch

0.27 mm

Screen Mode

Full HD

Energy & Performance

Operating Power Consumption

25 W


Aspect Ratio

16:9

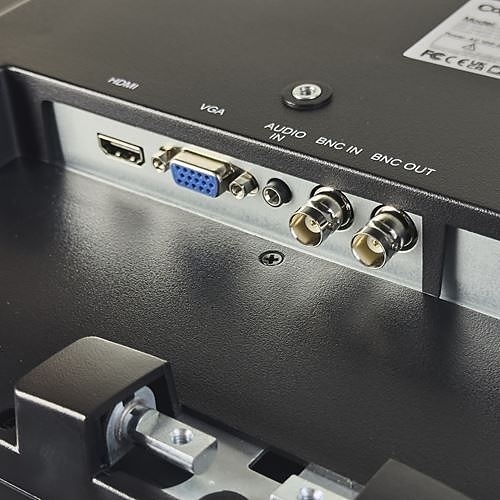

Interfaces/Ports

BNC

Yes

HDMI

Yes

Number of HDMI Inputs

1

VGA

Yes

Physical Characteristics

Color

Silver

Depth with Stand

149 mm

Height with Stand

398.50 mm

VESA Mount Compatible

Yes

VESA Mount Standard

100 x 100

Weight (Approximate)

3.85 kg

Weight with Stand (Approximate)

4.08 kg

Width with Stand

555.90 mm

Product Information

Display Screen Type

LED

Mount Type

Wall Mount

Video

Brightness (Nit)

250

Maximum Resolution

2MP

Native Contrast Ratio

1,000:1

Standard Refresh Rate

60 Hz

Warranty

Limited Warranty

3-Year

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

IPS Technology, Quick Touch Scalability, Source Auto Detection

Package Contents

Full HD Pro-Grade LED Colour Monitor
Dual Power cable (EU,UK)
VGA cable
Audio cable
IR Remote
Batteries
Hinge cover
Screws
Base of stand

,

Stand support
User manuals

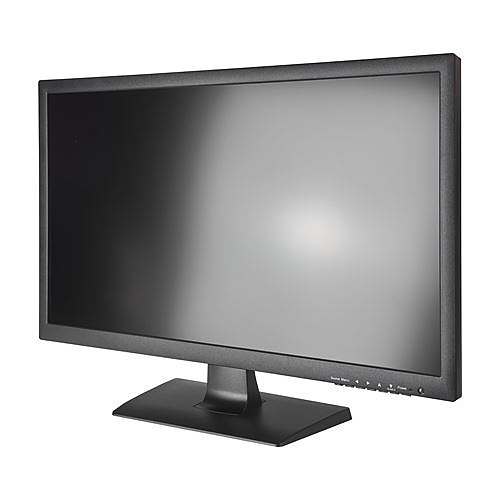

Capture by ADI WBXML24 24" LED Full HD Pro-Grade 24/7 Colour Monitor, Landscape, VESA Mount Compatible, Black
