TRENDnet TPE-117GI Gigabit Ultra PoE Injector
Brand:
TRENDnet
ADI #:TPE-117GI-UK
Model #: TPE-117GI

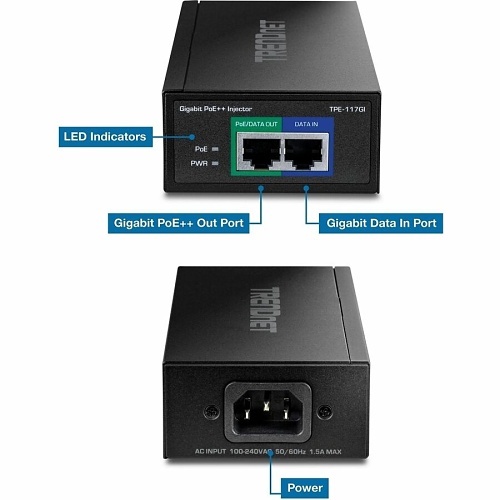

Name: TRENDnet TPE-117GI Gigabit Ultra PoE Injector
Converts a non-PoE gigabit port to an Ultra PoE gigabit port
Supplies PoE (15.4W), PoE+ (30W) or Ultra PoE power (60W)
Network a PoE device up to 100m (328 ft.)
Product Overview
General Information
Main Features
Converts a non-PoE gigabit port to an Ultra PoE gigabit port
Supplies PoE (15.4W), PoE+ (30W) or Ultra PoE power (60W)
Network a PoE device up to 100m (328 ft.)
Save on installation and equipment costs
Supports IEEE 802.3af / 802.3at / Ultra PoE
TRENDnet 3 YEAR PROTECTION: This Gigabit Ultra PoE+ Injector comes with 3 Year TRENDnet manufacturer protection.
Information
Category : Products, PoE Devices, Data Comm & Networking, PoE Injectors
Specifications
General Information
ADI Part Number
TPE-117GI-UK
Brand Name
Trendnet
Housing Material
Metal
Manufacturer
TRENDnet
Manufacturer Part Number
TPE-117GI
Product Condition
New
Product Model
TPE-117GI
Product Name
Gigabit Ultra PoE+ Injector
Product Type
PoE Injector
Weight (Approximate) (g)
185
Technical Information
Maximum Frequency (Hz)
60
Environmental Conditions
Operating Relative Humidity (H-H)
95%
Interfaces/Ports
Input Ports
1 x Gigabit Ethernet
Output Ports
Gigabit Ethernet
Physical Characteristics
Colour
Silver
Height
177.8 mm
Height (mm)
177.8
Weight (Approximate)
185 g
Width
203.2 mm
Width (mm)
203.2
Power Description
Input Voltage
120V AC, 230V AC
Input Voltage (V DC)
120, 230
Maximum Frequency
60 Hz
Maximum Output Current
1.38 A
Maximum Output Current (A)
1.38
Maximum Output Power
60W
Maximum Output Power (W)
60
Maximum Output Voltage
52 V DC
Minimum Frequency
50 Hz
Minimum Frequency (Hz)
50
Power over Ethernet (PoE)
Yes
Product Information
Length
279.4 mm
Length (mm)
279.4
Warranty
Limited Warranty
3 Year
Miscellaneous
Certifications & Standards
IEEE 802.3|IEEE 802.3u|IEEE 802.3ab|IEEE 802.3af|IEEE 802.3at|IEEE 802.3bt compatible|CE|FCC
TAA Compliant
Yes
