General Information

ADI Part Number

TI-PG160

Brand Name

TRENDnet

Manufacturer

TRENDnet

Manufacturer Part Number

TI-PG160

Product Line

Industrial

Product Model

TI-PG160

Product Name

16-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

Product Type

Ethernet Switch

Technical Information

Media Type Supported

Twisted Pair

Power Consumption

5.76W

Certifications

RoHS Compliant

Compliant

TAA Compliant

Yes

Interfaces/Ports

Modular

No

Total Number of Network Ports

16

Media & Performance

Network Technology

1000Base-T

Network & Communication

Ethernet Technology

Gigabit Ethernet

Layer Supported

2

Networking Standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Physical Characteristics

Depth

177.8 mm

Form Factor

DIN Rail Mount, Wall Mount

Height

76.2 mm

Material

Metal

Width

152.4 mm

Power Description

Frequency

50 Hz|60 Hz

Input Voltage

100V AC, 240V AC

Plug/Connector Type

Terminal Block

PoE Budget

240W

Power Source

Power Supply

Redundant Power Supply

Yes

Product Information

Length

155 mm

Warranty

Limited Warranty

Lifetime Warranty

Miscellaneous

Environmental Certification

CE, Freefall (IEC 60068-2-32), Shock (IEC 60068-2-27), Vibration (IEC 60068-2-6)

Environmentally Friendly

Yes

Features

16 x Gigabit PoE ports, 240W PoE power budget, 32Gbps switching capacity, Alarm output triggered by power failure, Hardened IP30 rated metal switch, Includes DIN-rail and wall mounts, Operating temperature range of -40 to 75 deg C (-40 to 167 deg F), Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048), Redundant power inputs with overload current protection

Package Contents

TI-PG160
Quick Installation Guide
Removable terminal block

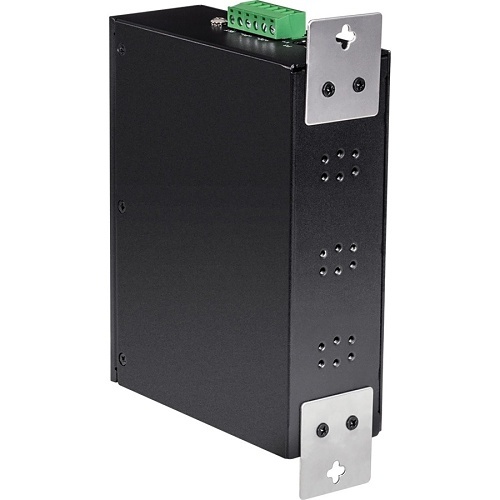

DIN-rail and wall mount kit

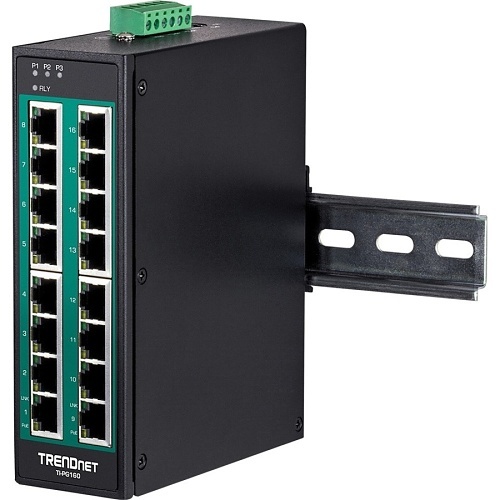

TRENDnet TI-PG160 16-Port Industrial Gigabit PoE+ DIN-Rail Switch
