General Information

ADI Part Number

TI-G62

Brand Name

TRENDnet

Manufacturer

TRENDnet

Manufacturer Part Number

TI-G62

Product Line

Industrial

Product Model

TI-G62

Product Name

6-Port Hardened Industrial Gigabit DIN-Rail Switch

Product Type

Ethernet Switch

weight

514 g

Technical Information

Media Type Supported

Optical Fiber, Twisted Pair

Power Consumption

3.84W

Certifications

RoHS Compliant

Restricted Substances Not Used

TAA Compliant

Yes

I/O Expansions

Expansion Slot Type

SFP

Number of SFP Slots

1

Number of SFP+ Slots

1

Number of Total Expansion Slots

1

Shared SFP Slot

Yes

Interfaces/Ports

Modular

No

Total Number of Network Ports

6

Uplink Port

No

Management & Protocols

Manageable

No

Media & Performance

Network Technology

1000Base-T, 1000Base-X

Network & Communication

Ethernet Technology

Gigabit Ethernet

Layer Supported

2

Networking Standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

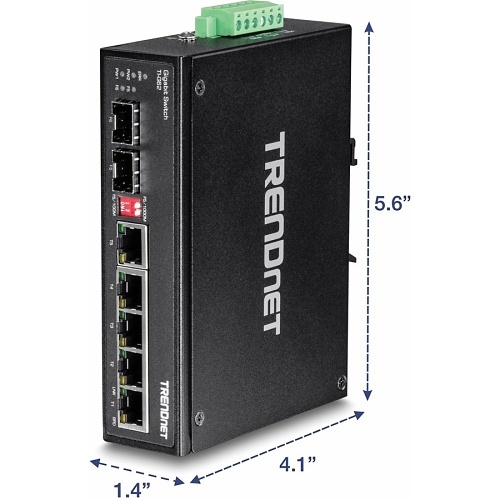

Physical Characteristics

Depth

104 mm

Form Factor

Rail Mount, Wall Mount

Height

143 mm

Material

Metal

Width

36 mm

Power Description

Input Voltage

12V DC, 56V DC

Plug/Connector Type

Terminal Block

Power Source

Power Supply

Redundant Power Supply

Yes

Warranty

Limited Warranty

Lifetime Warranty

Miscellaneous

Environmental Certification

CE, Freefall (IEC 60068-2-32), Shock (IEC 60068-2-27), Vibration (IEC 60068-2-6)

Features

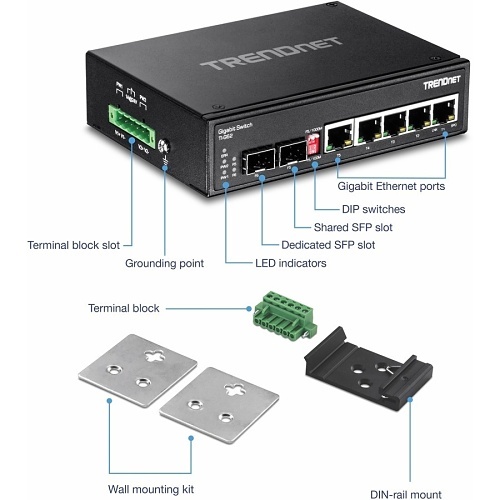

1 x shared SFP slot and 1 x dedicated SFP slot, 12 Gbps switching capacity, 5 x Gigabit Ethernet ports, Alarm output triggered by power failure, Extreme -40 to 75 deg C (-40 to 167 deg F) operating temperature range, Hardened IP30 rated metal switch, Includes DIN-rail and wall mounts, Power supply sold separately (model TI-M6024), Redundant power inputs with overload current protection

Package Contents

TI-G62
Quick Installation Guide
Removable terminal block
DIN-rail/wall mount kit

TRENDnet TI-G62 6-Port Hardened Industrial Gigabit DIN-Rail Switch
