TRENDnet MGBS80 SFP Single Mode LC Module, 80km

Brand: TRENDnet
ADI #:TEG-MGBS80 Model #: TEG-MGBS80  Name: TRENDnet MGBS80 SFP Single Mode LC Module, 80km
  • Transmission distance of up to 80km (49.7 mi.)
  • Duplex LC optical interface
  • Supports data rates of up to 1.25Gbps

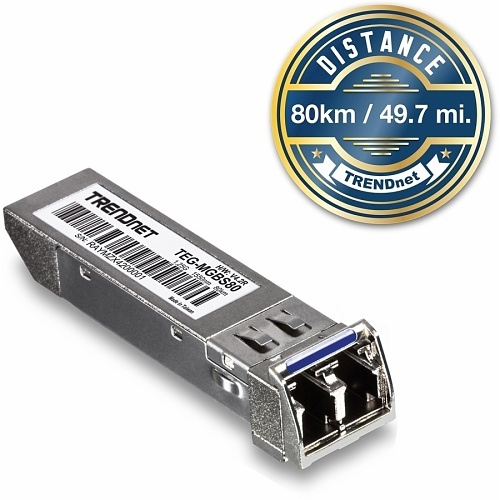

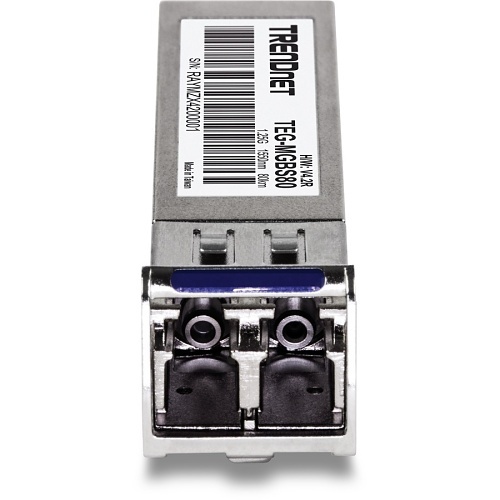

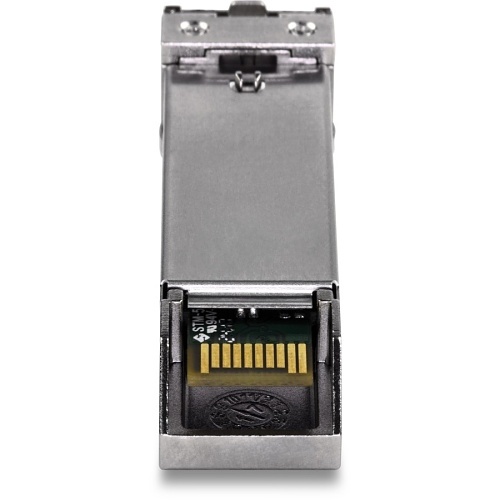

Image of TEG-MGBS80

Product Overview

General Information

The TEG-MGBS80 Mini-GBIC Single Mode module works with standard Mini-GBIC slots on most switches. This Single Mode LC Type module spans distances up to 80km and includes 1 x 1000Mbps-LX (LC-Type) Mini-GBIC connector.

Main Features
  • Transmission distance of up to 80km (49.7 mi.)
  • Duplex LC optical interface
  • Supports data rates of up to 1.25Gbps
  • Supports 1550nm singlemode network transmissions
  • Low Electromagnetic Interference (EMI) design
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Low power consumption
  • Lifetime Warranty
Information
Category : Data Comm & Networking, Media Converters & Transceivers, Products, SFP Modules

Specifications

General Information

ADI Part Number
TEG-MGBS80
Brand Name
TRENDnet
Manufacturer
TRENDnet
Manufacturer Part Number
TEGMGBS80
Product Condition
New
Product Model
MGBS80
Product Name
Mini GBIC Single-mode LX (70KM) Module
Product Type
SFP (mini-GBIC)

Technical Information

Media Type Supported
Optical Fiber

Certifications

NDAA Compliant
Yes
TAA Compliant
Yes

Interfaces/Ports

Connector Type
LC
Interfaces/Ports Details
1 x LC 1000Base-LX
Total Number of Ports
1

Media & Performance

Fiber Mode Supported
Single-mode
Network Technology
1000Base-LX

Network & Communication

Ethernet Technology
Gigabit Ethernet

Physical Characteristics

Application/Usage
Data Networking
Depth
584.2 mm
Form Factor
Hot-pluggable
Height
330.2 mm
Weight (Approximate)
11.23 kg
Width
228.6 mm

Warranty

Limited Warranty
5 Year

Miscellaneous

Compatibility

Compliant with IEEE 802.3z Gigabit Ethernet and Fiber Channel Standards

Environmental Certification
CE
Environmentally Friendly
Yes
