General Information

ADI Part Number

SD4A225DB-R-HNY

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

SD4A225DB-R-HNY

Product Line

WizSense

Product Model

SD4A225DB-R-HNY

Product Name

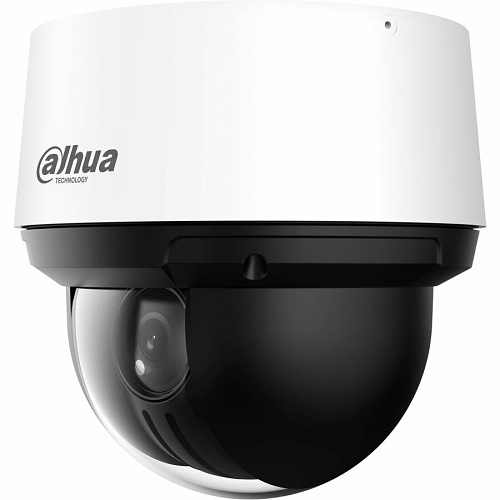

2MP 25x Invisible IR WizSense Network PTZ Camera

Product Series

WizSense

Product Type

Network Camera

weight

2.50 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

H: 58.5°-2.8° V: 33.2°-1.5° D: 67.5°-3.2°

Lens Type

Varifocal

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

4.8mm

Night Vision

Yes

Night Vision Type

Infrared

Number of IR LEDs

6

Optical Zoom

25x

Video Formats

H.264, H.264B, H.264H, H.265, MJPEG, Smart H.264+, Smart H.265+

Video Resolution

1280 x 720

Camera

Image Sensor Type

CMOS

Night Vision Distance

50 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

65°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/1 Second

Shortest Shutter Speed

1/30000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

120 mm

Minimum Aperture

f/3.5

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Power Description

Input Voltage

12V DC

Product Information

Diameter

171.1 mm

Mount Type

Ceiling Mount

Storage

Recording Formats

Full HD

Storage Type

Memory Card

Miscellaneous

Features

3D Digital Noise Reduction, Built-in IR LED, Cross Line Detection, Day/Night, Face Detection, Human Detection, Motion Detection, Vehicle Detection, Video Management System, Wide Dynamic Range

Indoor/Outdoor

Outdoor

Dahua SD4A225DB-R-HNY WizSense Series 2MP Invisible IR IP PTZ Camera, 4.8-120mm Varifocal Lens, 25x Optical Zoom, White
