Dahua DH-SD22404DB-GNY WizSense 4MP IP PTZ Camera, 4x Optical Zoom, Face Detection, IP66, White

Brand: Dahua Technology
ADI #:SD22404DBGNY Model #: DH-SD22404DB-GNY  Name: Dahua DH-SD22404DB-GNY WizSense 4MP IP PTZ Camera, 4x Optical Zoom, Face Detection, IP66, White
  • 1/2.8" STARVIS CMOS
  • Powerful 4x Optical Zoom
  • Max.25/30 fps at 4M/3M

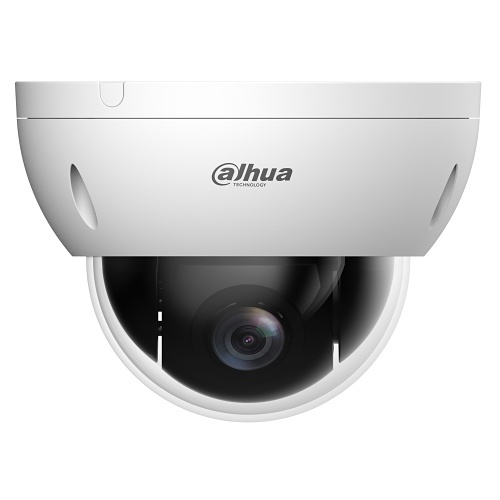

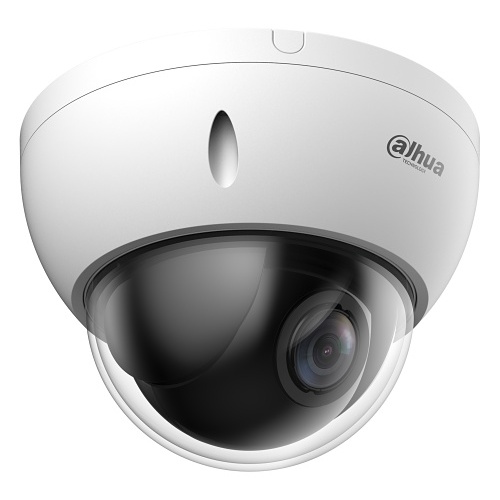

Image of SD22404DBGNY

Product Overview

General Information

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.

Main Features
  • 1/2.8" STARVIS CMOS
  • Powerful 4x Optical Zoom
  • Max.25/30 fps at 4M/3M
  • Max 100 deg/s pan speed
  • Supports face detection
  • Support Wi-Fi
  • 6000V Lightning-proof
Information
Category : IP Cameras, Products, PTZ Security Cameras, Video Surveillance
EAN Code : 6923172536334

Specifications

General Information

ADI Part Number
SD22404DBGNY
Brand Name
Dahua Technology
Manufacturer
Dahua Technology
Manufacturer Part Number
DH-SD22404DB-GNY
Product Model
DH-SD22404DB-GNY
Product Name
4MP 4x Starlight WizSense Network PTZ Camera
Product Series
WizSense
Product Type
Network Camera

Technical Information

Connectivity Technology
Wireless
Effective Camera Resolution
4MP
Field of View
Diagonal: 105.7°-33.6°, Horizontal: 90.3°-29.4°, Vertical: 48.5°-16.6°
Lens Type
Fixed
Maximum Aperture
F/3
Maximum Frame Rate
25 fps|30 fps
Optical Zoom
4x

Certifications

Ingress Protection Rating
IP66

Display & Graphics

Maximum Video Resolution
2560 x 1440

Environmental Conditions

Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%

Exposure

Longest Shutter Speed
1/1 s
Minimum Illumination
0.005 lux|0.0005 lux
Shortest Shutter Speed
1/30000 s

Lens

Maximum Focal Length
12 mm
Minimum Aperture
f/1.6

Physical Characteristics

Color
White
Height
95.9 mm
Weight (Approximate)
0.5 kg

Power Description

Input Voltage
12V DC

Storage

Storage Type
Memory Card

Video

Horizontal Resolution
2560

Miscellaneous

Environmental Certification
ANSI C63.4:2014, CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032, EN IEC 61000-3-2/EN55024/EN55035/EN50130-4
Impact Protection Rating
IK10
Indoor/Outdoor
Indoor, Outdoor
