General Information

ADI Part Number

QNE-C9013RL

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

QNE-C9013RL

Product Model

QNE-C9013RL

Product Name

8MP H.265 IR Flateye Camera

Product Series

Q series

Product Type

Network Camera

weight

790 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

H: 108°/ V: 59°/ D: 127°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

3mm

Night Vision

Yes

Night Vision Type

Infrared/Color

Number of IR LEDs

1

Video Formats

H.264, H.264H, H.264M, H.265, H.265H, H.265M, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.034Lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.0 mm

Lens Included

Yes

Maximum Focal Length

3 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Form Factor

Flateye

Product Information

Diameter

140 mm

Mount Type

Gang Box Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Environmental Certification

UL

Features

Back Light Compensation (BLC), Digital Noise Reduction, Gain Control, Human Detection, Motion Detection, Privacy Masking, SD Card Local Storage, Smart Object Detection, Vehicle Detection, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

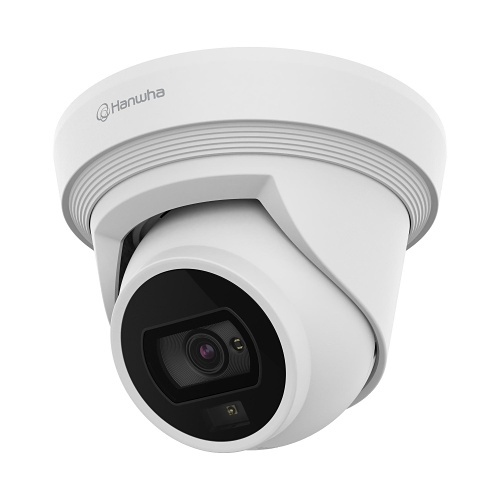

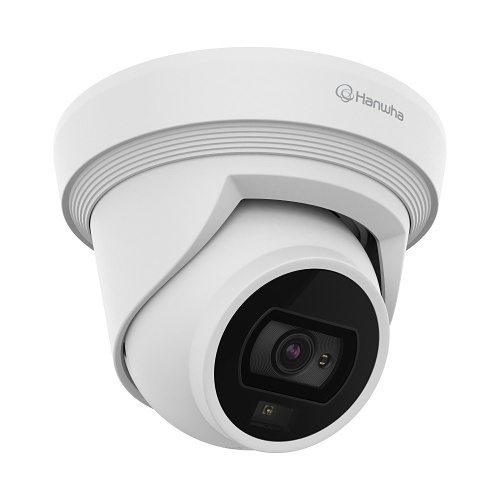

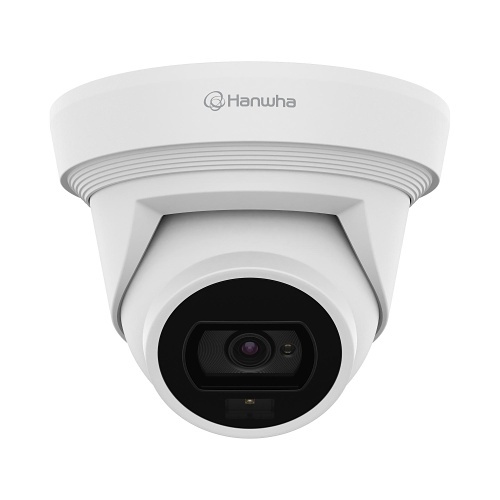

Hanwha QNE-C9013RL 8MP H.265 IR IP Flateye Camera, 3.0mm Fixed Lens, WDR, WiseNR II, White
