General Information

ADI Part Number

PNO-A9311R

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

PNO-A9311R

Product Model

PNO-A9311R

Product Name

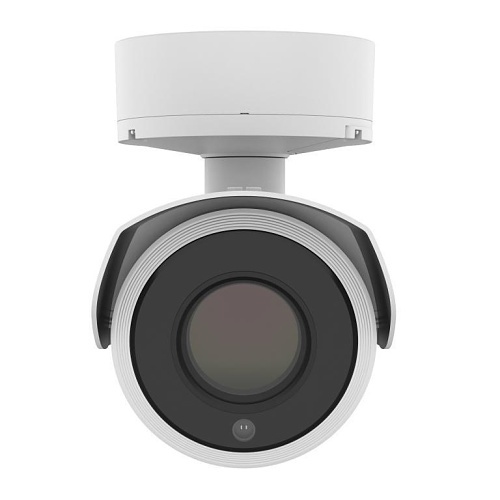

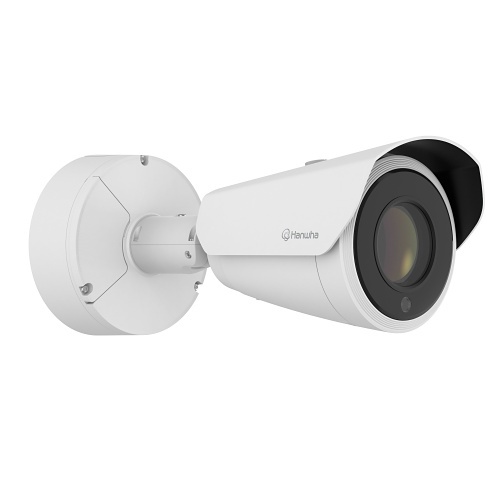

PNO-A9311R 4K AI IR Bullet Camera

Product Series

P series

Product Type

Network Camera

weight

3.20 kg

Technical Information

Connectivity Technology

Wired

Field of View

H: 60.92°(Wide)~2.2°(Tele), V:35.26°(Wide)~1.24°(Tele), D:69.18°(Wide)~2.52°(Tele)

Lens Type

Varifocal

Maximum Aperture

f/1.36

Maximum Frame Rate

30 fps

Minimum Focal Length

6.9mm

Night Vision

Yes

Night Vision Type

Infrared

Number of IR LEDs

1

Optical Zoom

31x

Video Formats

H.264, H.264H, H.264M, H.265, H.265H, H.265M, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

70 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-40°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.075Lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

6.91-214.7 mm

Lens Included

Yes

Maximum Focal Length

214.70 mm

Minimum Aperture

f/4.6

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

136.2 mm

Mount Type

Conduit Mount, Gang Box Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Video

Analog Video Signal Format

CVBS

Miscellaneous

Environmental Certification

UL

Features

Back Light Compensation (BLC), Built-in IR LED, Day/Night, HTTPS Encryption, Human Detection, Ingress Protection, Motion Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Hanwha PNO-A9311R 4K AI IR IP Bullet Camera, 6.91-214.7mm Lens, 31x Zoom, WDR, WiseNR II, IP66/67, IK10
