General Information

ADI Part Number

PND-A9081RF

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

PND-A9081RF

Product Model

PND-A9081RF

Product Name

4K IR Indoor Flush Mount Dome AI Camera

Product Series

P series

Product Type

Dome Cameras

weight

1.95 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Horizontal: 101.4°-45.5°, Vertical: 53.6°-25.5°, Diagonal:120.7°-52.3°

Lens Type

Varifocal

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

4.5mm

Night Vision

Yes

Night Vision Type

Colour

Optical Zoom

2x

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP52

NDAA Compliant

Yes

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-25°C

Operating Humidity

0.9

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.05 lux|0.005 lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

4.5-10mm

Lens Included

Yes

Maximum Focal Length

10 mm

Minimum Aperture

f/2.65

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Form Factor

Dome

Height

163 mm

Power Description

Input Voltage

12V DC

Product Information

Diameter

205 mm

Mount Type

Flush Mount, In-Ceiling Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Video

Analog Video Signal Format

CVBS

Warranty

Limited Warranty

3-Year

Miscellaneous

Features

Audio Detection, Built-in Infrared Illuminator, Day/Night, Digital Image Stabilization, Face Detection, Motion Detection, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor

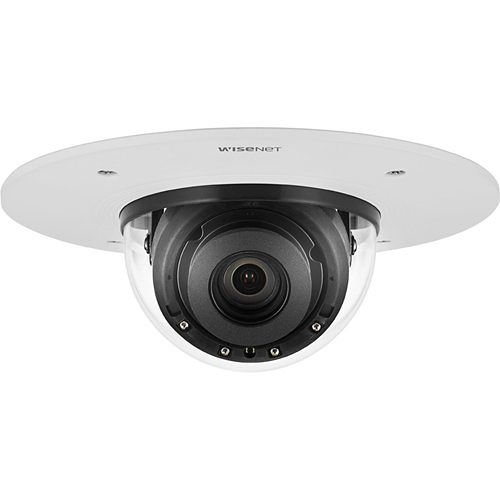

Hanwha PND-A9081RF P Series 8MP Flush-Mount AI IR Dome Camera, 4.5-10mm Varifocal Lens
