General Information

ADI Part Number

PND-A6081RV

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

PND-A6081RV

Product Model

PND-A6081RV

Product Name

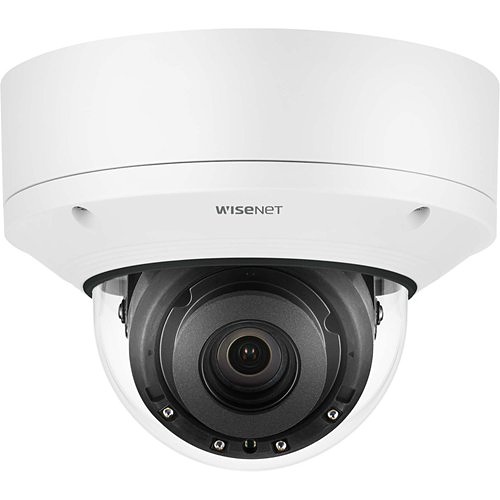

2MP Network AI IR Dome Camera

Product Series

P series

Product Type

Dome Cameras

weight

1.60 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Horizontal: 103.1°-44.5°, Vertical: 54.2°-24.9°, Diagonal: 124°-51.1°

Lens Type

Varifocal

Maximum Aperture

f/2.15

Maximum Frame Rate

120 fps

Minimum Focal Length

4.4mm

Night Vision

Yes

Night Vision Type

Colour

Optical Zoom

2.1x

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP52, IP53

NDAA Compliant

Yes

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-25°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

4.38-9.33 mm

Lens Included

Yes

Maximum Focal Length

9.33 mm

Minimum Aperture

f/1.3

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Weatherproof

Form Factor

Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

160 mm

Mount Type

Ceiling Mount, Corner Mount, Parapet Mount, Pole Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Features

Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Enter/Exit Detector, Face Detection, Gain Control, Microphone In, Motion Detection, Privacy Masking, Shock Detection, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

Hanwha PND-A6081RV P Series, WDR IP53 2MP 4.38-9.33mm Motorized Lens, IR 40M IP Dome Camera, White
