General Information

ADI Part Number

PND-A6081RF

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

PND-A6081RF

Product Model

PND-A6081RF

Product Name

2MP Network AI IR Dome Camera

Product Series

P series

Product Type

Dome Cameras

weight

1.95 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Lens Type

Varifocal

Maximum Aperture

f/2.15

Maximum Frame Rate

120 fps

Minimum Focal Length

4.4mm

Night Vision

Yes

Night Vision Type

Colour

Optical Zoom

2.1x

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

40 m

Certifications

CE Marking

Yes

Ingress Protection Rating

IP52

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-25°C

Operating Humidity

0.9

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

4.38-9.33 mm

Lens Included

Yes

Maximum Focal Length

9.33 mm

Minimum Aperture

f/1.3

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Form Factor

Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

205 mm

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Features

Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Enter/Exit Detector, Face Detection, Gain Control, Microphone In, Motion Detection, Privacy Masking, Shock Detection, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

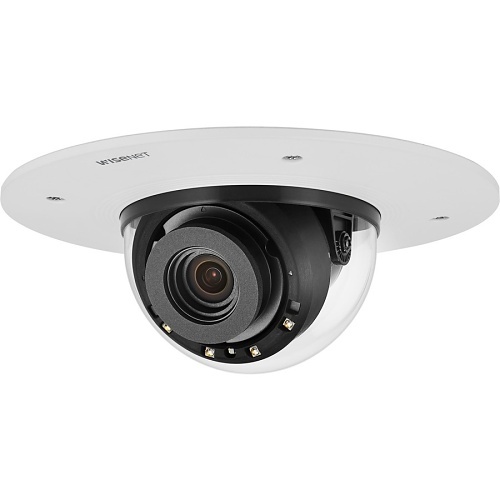

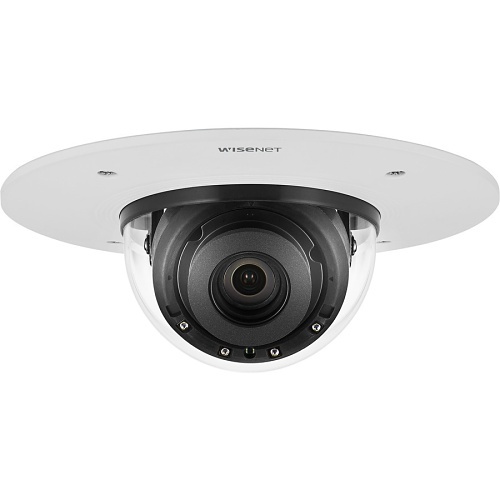

Hanwha PND-A6081RF P Series, IP52 2MP 4.38-9.33mm Motorized Varifocal Lens, IR 40M AI IP Dome Camera, White
