General Information

ADI Part Number

NDE-8703-RXL

Brand Name

Bosch

Manufacturer

Bosch

Manufacturer Part Number

F.01U.411.093

Packaged Quantity

11-Count

Product Model

F.01U.411.093

Product Name

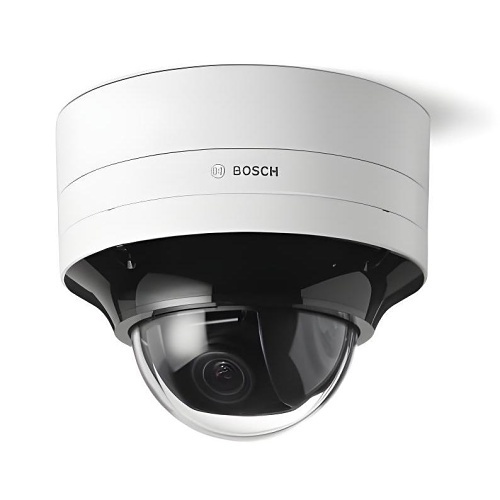

Fixed dome 4MP HDR X 4.4-10mm PTRZ IP67

Product Series

X series

Product Type

Dome Camera

weight

2.30 kg

Technical Information

Effective Camera Resolution

4MP

Field of View

Horizontal, Vertical

Maximum Aperture

f/1.97

Maximum Frame Rate

60 fps

Minimum Focal Length

4.4mm

Video Formats

H.264, H.265, HEVC, MJPEG

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-50°C

Operating Humidity

5-93% (Non-condensing)

Lens

Focal Length

4.4-10mm

Maximum Focal Length

10 mm

Minimum Aperture

f/1.3

Physical Characteristics

Color

White

Height

148 mm

Power Description

Input Voltage

12-26V DC, 24V AC

Product Information

Diameter

175 mm

Mount Type

Surface

Miscellaneous

Country of Origin

PT

Environmental Certification

REACH, RoHS

Environmentally Friendly

Yes

Impact Protection Rating

IK11

Package Contents

(1) FLEXIDOME 8100i IR 2MP - X series camera
(1) T-20 security Torx bit
(1) Mini screwdriver
(1) IP66 rubber grommet
(1) IP67 grommet
(1) Network patch cable 50 cm
(3) Identification label

,

(1) Quick installation guide
(1) Safety and security information

Bosch F.01U.411.093 4MP PTRZ Fixed Dome Camera, 4.4-10mm Lens, IP67
