General Information

ADI Part Number

IWP533-1ERS

Brand Name

Pelco by Motorola Solutions

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

IWP533-1ERS

Product Line

Sarix Pro

Product Model

IWP533-1ERS

Product Name

Sarix Pro IR Vandal Resistant Wedge Dome

Product Series

IWP

Product Type

Network Camera

weight

380 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Horizontal: 104.4° Vertical: 75° Diagonal: 129.6°

Lens Type

Fixed

Maximum Aperture

f/2

Maximum Frame Rate

60 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Camera

Image Sensor Type

CMOS

Night Vision Distance

25 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-20°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1 Second

Shortest Shutter Speed

1/10000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

2.80 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Vandal Resistant, Weather Resistant

Form Factor

Wedge

Height

55.9 mm

Width

109.2 mm

Product Information

Mount Type

Pole Mount, Surface Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Features

Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Motion Detection, Password Protection

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

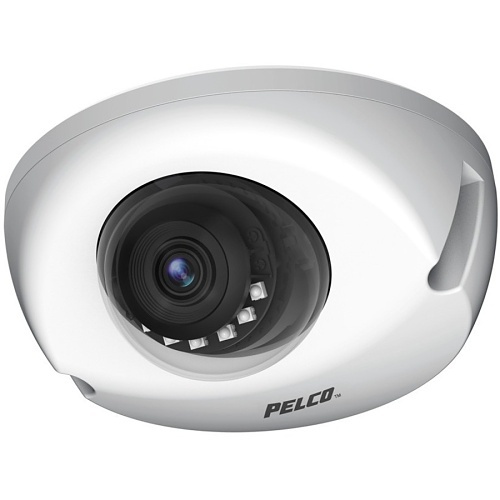

Pelco IWP533-1ERS Sarix Pro IWP Series 5MP IR Vandal Resistant Wedge Dome IP Camera, 2.8mm Lens
