General Information

ADI Part Number

IPSDW81642MS3

Brand Name

Dahua Technology

Manufacturer

Dahua Technology

Manufacturer Part Number

DH-PSDW81642MP-A360-D440-DC36V-S3

Product Line

WizMind

Product Model

DH-PSDW81642MP-A360-D440-DC36V-S3

Product Name

16 MP Multi-Sensor 360° Panoramic PTZ Hubble WizMind Network Camera

Product Series

WizMind

Product Type

Network Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

H: 2.2°-61.8° V: 1.3°-36.3° D: 2.4°-69.2°

HD Recording

Yes

Lens Mount Type

M16, Module

Lens Type

Fixed, Varifocal

Maximum Aperture

f/1.4

Maximum Frame Rate

25 fps|30 fps

Minimum Focal Length

5.50 mm

Night Vision

Yes

Night Vision Type

Infrared

Number of IR LEDs

7

Optical Zoom

40x

Camera

Night Vision Distance

400 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

8192 x 1800 |2560 x 1440

Number of Sensors

8

Environmental Conditions

Maximum Operating Temperature

70°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 s

Minimum Illumination

0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

220 mm

Minimum Aperture

f/1.0

Physical Characteristics

Color

White

Form Factor

Dome

Height

462 mm

Weight (Approximate)

14.4 kg

Power Description

Input Voltage

36V DC

Product Information

Diameter

383 mm

Mount Type

Ceiling Mount, Vertical Pole Mount, Wall Mount

Storage

Recording Formats

2K

Storage Type

Memory Card

Video

Analog Video Signal Format

CVBS

Horizontal Resolution

2560|8192

Miscellaneous

Environmental Certification

CE-EMC, CE-LVD: EN62368-1, UL/CUL: UL62368-1 &

Features

Auto Gain Control, Automatic White Balance, Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Motion Detection, Noise Reduction, Privacy Masking, PTZ, Region of Interest, White Balance, Wide Dynamic Range

Indoor/Outdoor

Outdoor

Package Contents

16 MP Multi-Sensor 360° Panoramic PTZ Hubble WizMind Network Camera
Mount Adapter
Power Adapter
Lens

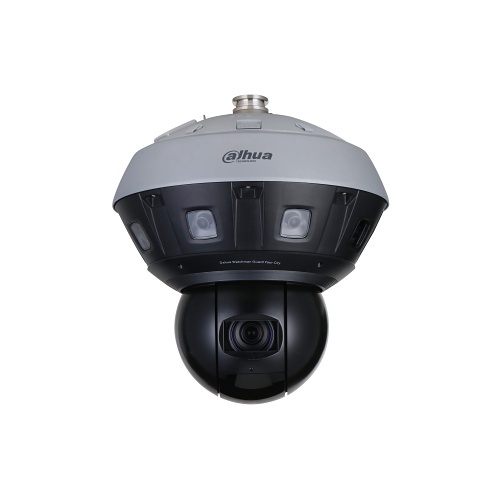

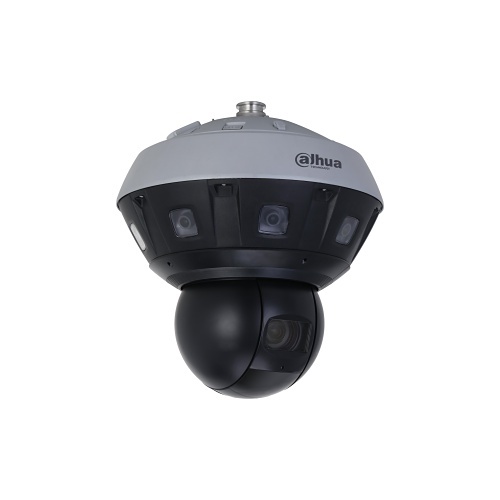

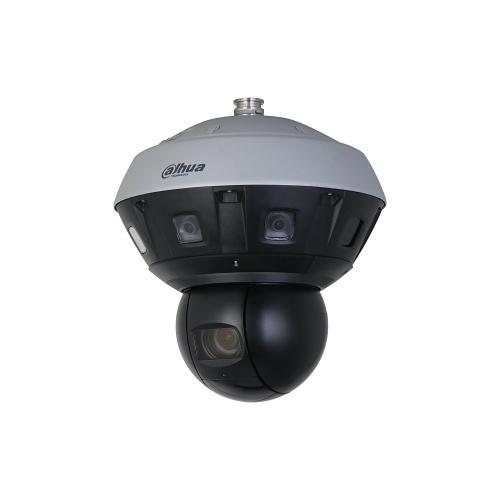

Dahua DH-PSDW81642MP-A360-D440-DC36V-S3 8×2MP Multi-Sensor Panoramic + PTZ WizMind Network Camera
