General Information

ADI Part Number

IHDW3241TZ271S2

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DH-IPC-HDW3241TP-ZS-27135-S2

Product Line

WizSense

Product Model

DH-IPC-HDW3241TP-ZS-27135-S2

Product Name

2MP IR Vari-focal Eyeball WizSense Network Camera

Product Series

3

Product Type

Network Camera

weight

715 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Diagonal: 137° –35°, Horizontal: 109°–30°, Vertical: 56° –17°

Lens Mount Type

M14

Lens Type

Motorised Varifocal

Maximum Aperture

f/1.5

Maximum Frame Rate

30 fps

Minimum Focal Length

2.7mm

Night Vision

Yes

Night Vision Type

Infrared

Number of IR LEDs

2

Optical Zoom

5x

Video Formats

H.264, H.264B, H.264H, H.265, MJPEG, Smart H.264+, Smart H.265+

Video Resolution

1920 x 1080

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 s

Minimum Illumination

0.002 lux|0.0002 lux|0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.7-13.5mm

Lens Included

Yes

Maximum Focal Length

13.5 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Water Resistant

Form Factor

Eyeball

Power Description

Input Voltage

12V DC

Product Information

Diameter

122 mm

Mount Type

Î¦14

Storage

Recording Formats

Full HD

Storage Type

Memory Card

Miscellaneous

Features

Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Highlight Compensation (HLC), Region of Interest, SD Card Local Storage, Wide Dynamic Range

Indoor/Outdoor

Outdoor

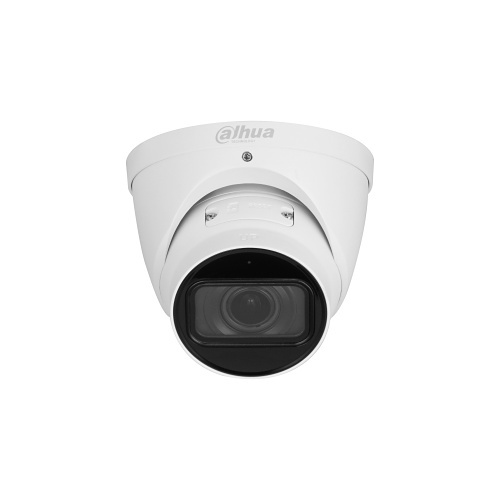

Dahua DH-IPC-HDW3241TP-ZS-27135-S2 2MP IR Vari-Focal Eyeball WizSense IP Camera
