General Information

ADI Part Number

IHDBW3541EAS2

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DH-IPC-HDBW3541EP-AS-0280B

Product Line

WizSense

Product Model

DH-IPC-HDBW3541EP-AS-0280B

Product Name

DH-IPC-HDBW3541EP-AS-0280B 5MP IR Fixed focal Dome WizSense Network Camera

Product Series

2

Product Type

Dome Camera

weight

378 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Horizontal: 50° Vertical: 36° Diagonal: 64°, Horizontal: 80° Vertical: 59° Diagonal: 106°, Horizontal: 98° Vertical: 72° Diagonal: 130°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

20 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Colour

Number of IR LEDs

3

Video Resolution

1280 x 720

Video Signal Format

PAL

Camera

Night Vision Distance

50 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.005 lux|0.0005 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm, 3.6 mm, 6 mm

Lens Included

Yes

Maximum Focal Length

6 mm

Physical Characteristics

Color

Black

Form Factor

Dome

Height

81 mm

Power Description

Input Voltage

12V DC

Product Information

Diameter

109.9 mm

Mount Type

Ceiling Mount, In-Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage

Recording Formats

HD

Miscellaneous

Environmental Certification

CE, UL

Environmentally Friendly

Yes

Features

12 VDC/PoE power supply., 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition, Abnormality detection- Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection., Alarm- 1 in, 1 out- audio- 1 in, 1 out- supports max. 256 G Micro SD card- built in MIC., Built-in IR LED, max. IR distance- 50 m, H.265 codec, high compression rate, low bit rate, Intelligent monitoring- Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)., Outputs max. 5MP (2592 x 1944) at20 fps, and supports 4MP (2688 x 1520) at25/30 fps, ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments, Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

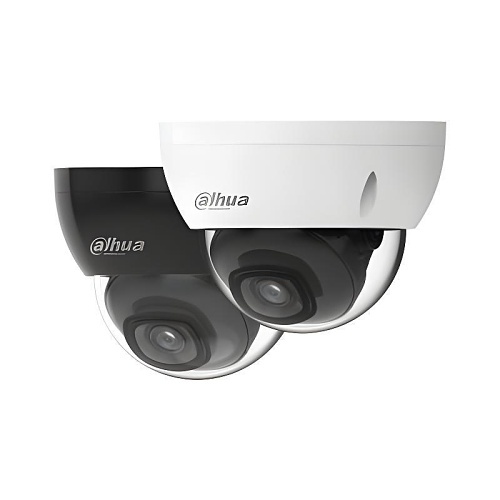

Dahua DH-IPC-HDBW3541EP-AS-0280B 5MP IR Fixed-Focal Dome WizSense IP Camera, 2.8mm Lens, Black
