General Information

ADI Part Number

IHDBW2449ESIL2

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DH-IPC-HDBW2449EP-S-IL-0280B

Product Model

DH-IPC-HDBW2449EP-S-IL-0280B

Product Name

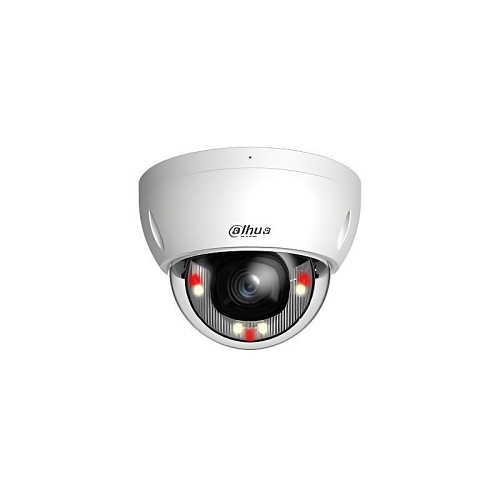

DH-IPC-HDBW2449EP-S-IL-0280B 4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

Product Series

2

Product Type

Dome Camera

weight

0.35 kg

Technical Information

Effective Camera Resolution

4MP

Field of View

Horizontal: 101° Vertical: 54° Diagonal: 120°, Horizontal: 83° Vertical: 43° Diagonal: 100°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

20 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Colour

Video Formats

H.264, H.264B, H.264H, H.265, MJPEG

Video Resolution

2688 x 1520

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.006 lux|0.0006 LUX

Shortest Shutter Speed

1/100000 Second

Lens

Focal Length

2.8mm, 3.6mm

Lens Included

Yes

Maximum Focal Length

3.6 mm

Physical Characteristics

Color

White

Form Factor

Dome

Height

81 mm

Power Description

Input Voltage

12V DC

Product Information

Diameter

109.9 mm

Mount Type

Ceiling Mount, In-Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount

Miscellaneous

Environmental Certification

CE

Environmentally Friendly

Yes

Features

12 VDC/PoE power supply, easy for installation., 4-MP 1/2.8" CMOS image sensor, low luminance, and high definition image, Abnormality detection- Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection., Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m., H.265 codec, high compression rate, ultra-low bit rate., Intelligent monitoring- Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)., Outputs max. 4 MP (1920 x1080)at25/30 fps., ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments., Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes., Supports max. 256 G Micro SD card- built in Mic.

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

Dahua DH-IPC-HDBW2449EP-S-IL-0280B 4MP Smart Dual Light Fixed-Focal Dome WizSense IP Camera, 2.8mm Lens, White
