General Information

ADI Part Number

IBD532-1

Brand Name

Pelco by Motorola Solutions

Manufacturer

Motorola

Manufacturer Part Number

IBD532-1

Product Line

Sarix Corner

Product Model

IBD532-1

Product Name

IBD532-1 Sarix Corner Camera

Product Series

Sarix Corner 3 Series

Product Type

Corner Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Horizontal, Vertical

Maximum Aperture

f/2.2

Maximum Frame Rate

20fps, 30fps

Night Vision

Yes

Night Vision Type

IR LED

Video Formats

H.264, H.265, MJPEG

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

15 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-40°C

Operating Humidity

0-95%

Exposure

Longest Shutter Speed

1/7 Second

Minimum Illumination

0.027 Lux

Shortest Shutter Speed

1/8196 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.3mm

Lens Included

Yes

Physical Characteristics

Color

White

Durability

Vandal Resistant, Water Resistant

Power Description

Input Voltage

12V DC, 24V AC

Product Information

Mount Type

Corner Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

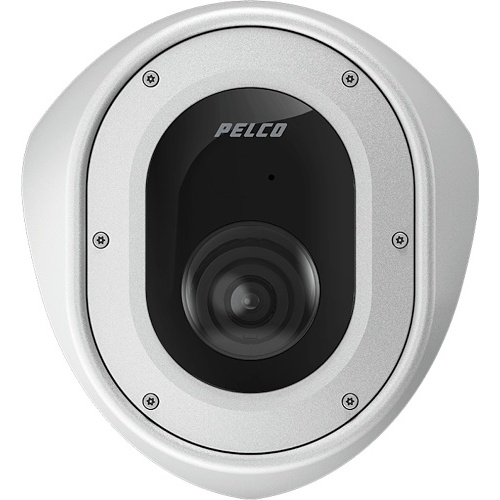

Pelco IBD532-1 3 Series, 5MP Sarix Corner Camera, White
