General Information

ADI Part Number

I180SR/ES180

Brand Name

CDVI

Manufacturer

CDVI Group

Manufacturer Part Number

I180SR/ES180

Packaged Quantity

1

Product Model

I180SR (ES180)

Product Name

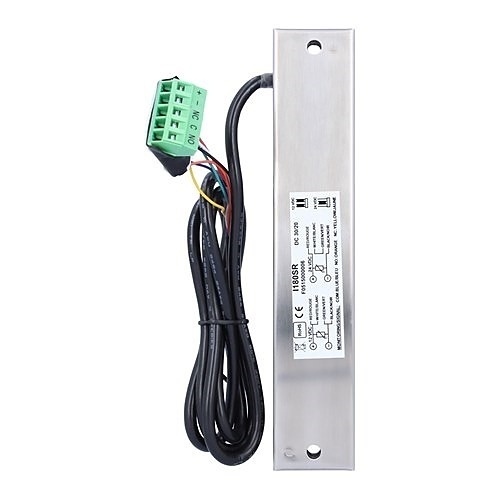

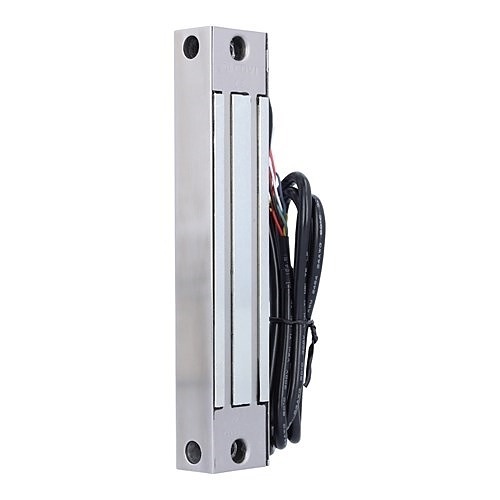

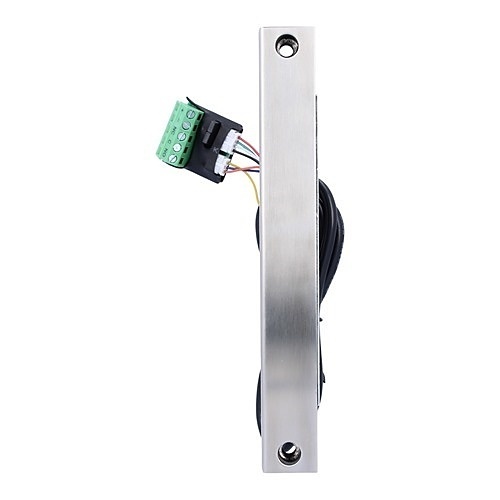

I180SR (ES180) Magnetic Lock

Product Series

I SERIES

Product Type

Magnetic Lock

Technical Information

Door Supported

Double Door, Single Door

Magnet Depth

21.90 mm

Magnet Width

33 mm

Certifications

RoHS Compliant

Compliant

Physical Characteristics

Application/Usage

Access Control System, Commercial, Door, Gate, Industrial, Outdoor, Public Building, Wooden Door

Color

Silver

Depth

22 mm

Form Factor

Surface Mount

Lock Depth

22 mm

Lock Height

175 mm

Lock Width

32.5 mm

Material

Stainless Steel

Product Material

Stainless Steel

Weight (Approximate)

0.78 kg

Width

32.5 mm

Power Description

Input Current

275 mA, 550 mA

Input Voltage

12V DC, 24V DC

Product Information

Finishing

Stainless Steel

Holding Force

180 kg

Length

32.5 mm

Warranty

Limited Warranty

5 Year

Miscellaneous

Features

Fail Safe, Monitored, Vandal Resistant, Weather Resistant

Package Contents

I180SR (ES180) Magnetic Lock
Full Fixing Kits

CDVI I180SR/ES180 Magnet Surface External 180kg
