General Information

ADI Part Number

HHDBW2241EAPA28S2D

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DH-HAC-HDBW2241EAP-A-0280B-S2-DIP

Product Model

DH-HAC-HDBW2241EAP-A-0280B-S2-DIP

Product Name

2MP Starlight HDCVI Fixed IR Dome Camera

Product Series

Pro

Product Type

Dome Camera

weight

0.33 kg

Technical Information

Effective Camera Resolution

2MP

Field of View

Horizontal: 86° Vertical: 46° Diagonal: 101°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Video Resolution

1920 x 1080

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Exposure

Longest Shutter Speed

1/25 Second|1/30 Second

Minimum Illumination

0.001 lux

Shortest Shutter Speed

1/100000 Second|1/100000 Second

Lens

Focal Length

3.6 mm

Lens Included

Yes

Maximum Focal Length

3.6 mm

Physical Characteristics

Form Factor

Dome

Height

89.1 mm

Power Description

Input Voltage

12V DC

Product Information

Diameter

122 mm

Mount Type

Ceiling Mount, In-Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount

Miscellaneous

Environmental Certification

CE, UL

Environmentally Friendly

Yes

Features

3.6 mm fixed lens (2.8 mm optional), Built-in mic, CVI/CVBS/AHD/TVI switchable, IP67, IK10, DC12 V, Max 30fpsat1080P, Max. IR length 40 m, Smart IR, Starlight, 130 dB true WDR, 3D NR, Super Adapt

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

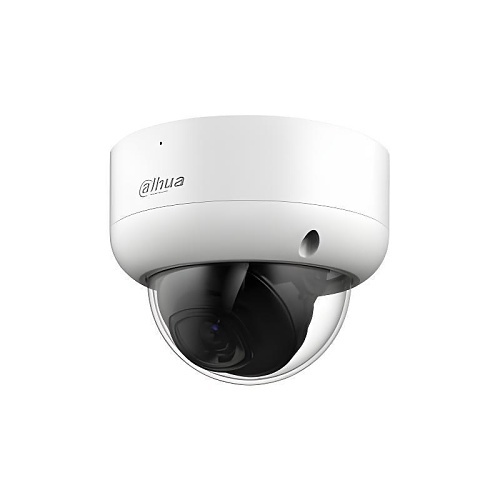

Dahua DH-HAC-HDBW2241EAP-A-0280B-S2-DIP 2MP Starlight HDCVI IR Dome Camera
