General Information

ADI Part Number

FPKX10DP

Brand Name

Pyronix

Manufacturer

Hikvision

Manufacturer Part Number

FPKX10DP

Product Model

KX10DP

Product Name

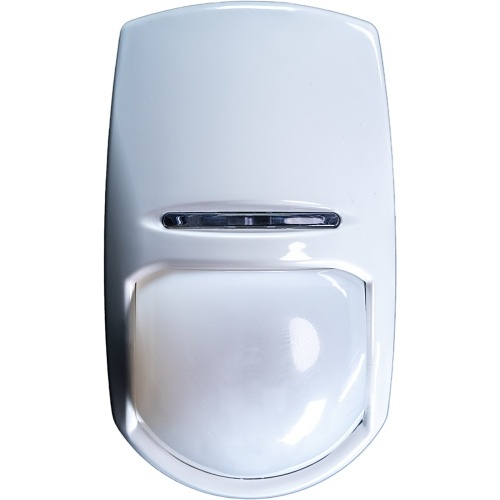

KX10DP Motion Sensor

Product Series

KX

Product Type

Motion Sensor

Technical Information

Connectivity Technology

Wired

Maximum Motion Sensing Distance

2.4 m

Maximum Viewing Angle

85°

Minimum Motion Sensing Distance

1.8m

Passive Infrared Sensor (PIR)

Yes

Sensor Type

Passive Infrared

Wireless Technology

Infrared

Certifications

RoHS Compliant

Exempt

Security Grade

2

TAA Compliant

No

Physical Characteristics

Color

Blue

Depth

50 mm

Height

117 mm

Material

ABS Plastic

Width

69 mm

Power Description

Input Voltage

9-16V DC

Product Information

Mount Type

Ceiling Mount, Wall Mount

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

EN50131-1:2006+A1:2009, EN50131-2-2:2008, PD6662:2017

Environmentally Friendly

Yes

Features

Automatic sensitivity, Digital temperature compensation, Independent Floating Thersholds, Optical 3D Systems, Pet Immune, Reliable & secure, Sealed Optics, Tamper Proof, Volumentric detection

Indoor/Outdoor

Indoor

Package Contents

KX10DP Motion Sensor
Wall Mounted Bracket
Ceiling Mounted Bracket

Pyronix FPKX10DP Digi 10M PIR Detector, 24kg Pet Immunity
