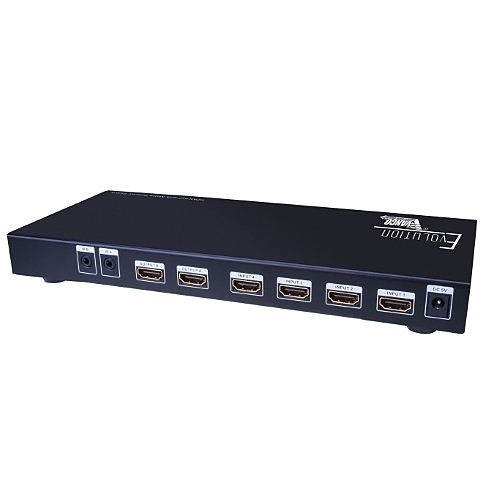

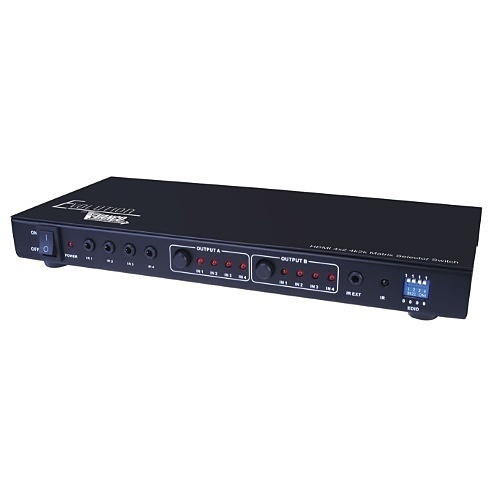

Vanco EVMX4442 Evolution HDMI 4x2 4K2K Compact Matrix Selector Switch
Brand:
Vanco
ADI #:EVMX4442
Model #: EVMX4442
Name: Vanco EVMX4442 Evolution HDMI 4x2 4K2K Compact Matrix Selector Switch
Allows up to 4 HDMI sources to be distributed simultaneously to up to 2 displays
Ultra HD capable Matrix Switcher providing a perfect solution for Home or Retail AV as well as Commercial and Hospitality Installations
Features EDID management which supports default HDMI EDID
Product Overview
General Information
Main Features
Allows up to 4 HDMI sources to be distributed simultaneously to up to 2 displays
Ultra HD capable Matrix Switcher providing a perfect solution for Home or Retail AV as well as Commercial and Hospitality Installations
Features EDID management which supports default HDMI EDID
HDCP Compliant
Supports 4K2K (2160p at 30 Hz) Ultra High Definition Resolution
Supports HDMI Deep Color and 3D
Supports 7.1 Channel digital audio
Wideband bi-directional IR pass-through (IR Transmitters- IR Receivers and IR Remote Control Included)
Compact design for easy installation- rack mounting ear set included
Power Supply of DC 5V
Information
Category : Commercial Video Conferencing, Pro AV, Products, Video Conference Systems
EAN Code : 741835100441
Specifications
General Information
ADI Part Number
EVMX4442
Brand Name
Vanco
Manufacturer
Vanco International, Inc
Manufacturer Part Number
EVMX4442
Packaged Quantity
1
Product Line
Evolution
Product Model
EVMX4442
Product Name
Evolution HDMI 4×2 4K2K Compact Matrix Selector Switch
Product Type
Audio/Video Switchbox
Technical Information
Connectivity Technology
Cable
Device Supported
Display
Number of Input Devices Supported
4
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
Number of HDMI Inputs
4
Number of HDMI Outputs
2
Physical Characteristics
Depth
111.8 mm
Form Factor
Desktop, Rack Mount
Height
25.4 mm
Width
259.1 mm
Product Information
Number of Displays Supported
2
Video
Graphics Modes
4K
Miscellaneous
Package Contents
(1) EVMX4442 HDMI 4×2 Matrix Selector Switch
(3) IR Receiver (RX)
(4) IR Blaster (TX)
(1) DC 5V- 1A power supply
(1) Mounting hardware
(1) IR remote control
(1) User Manual
