CDVI CDV-RLC Relay Module for 2EASY 2-Wire video Door entry systems

Brand: CDVI
ADI #:CDV-RLC Model #: CDV-RLC  Name: CDVI CDV-RLC Relay Module for 2EASY 2-Wire video Door entry systems
  • Allows second lock operation from monitor (programmable)
  • Supports high power consumption locks via an external PSU
  • Configurable unlock time - from 1.0 to 30.0 seconds

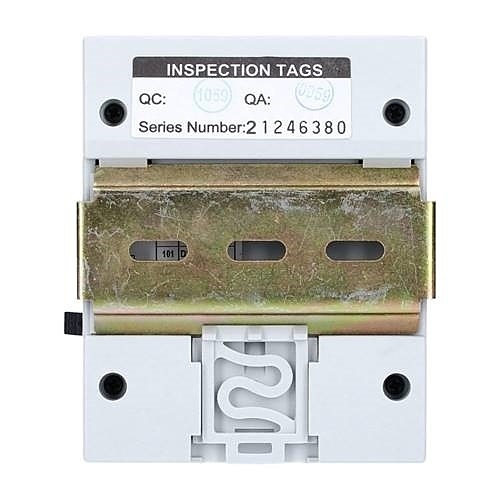

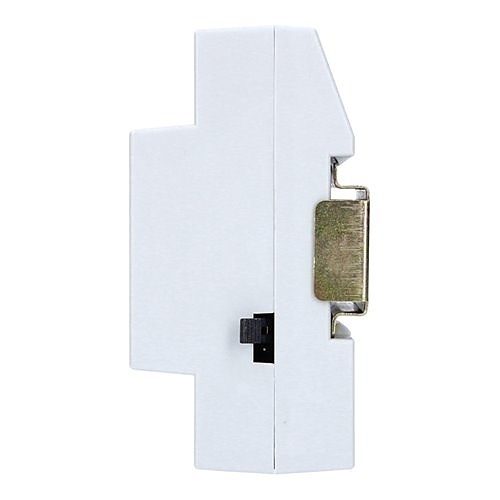

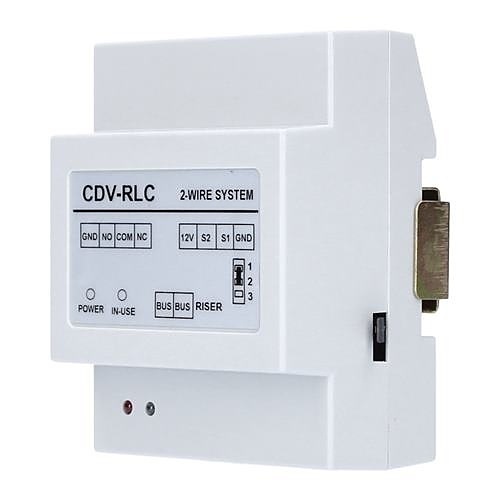

Image of CDV-RLC

Product Overview

General Information

The CDV-RLC is a multi-functional output device for the 2EASY 2-Wire system designed to control door locks. Adding the CDV-RLC to a 2EASY door entry system allows the addition of a second lock output to the CDV-91/96/97 series and CDV-DDP door stations. In addition to lock functions, the CDV-RLC can be configured to operate a lobby/gate light, switched by the lighting function of the CDV-47 monitor.

Main Features
  • Allows second lock operation from monitor (programmable)
  • Supports high power consumption locks via an external PSU
  • Configurable unlock time - from 1.0 to 30.0 seconds
  • Request-to-exit input
  • Recommended for use with ATRIUM and the CDV-ACCS module
Information
Category : Communications, Intercom & Entry Accessories, Intercoms & Telephone Entry, Products

Specifications

General Information

ADI Part Number
CDV-RLC
Brand Name
CDVI
Manufacturer
CDVI Group
Manufacturer Part Number
CDV-RLC
Packaged Quantity
1
Product Name
Relay Module for 2EASY 2-Wire Video Door Entry Systems
Product Series
2EASY
Product Type
Relay

Environmental Conditions

Maximum Operating Temperature
40°C
Minimum Operating Temperature
-10°C

Physical Characteristics

Application/Usage
Apartment, Commercial, Intercom, Residential, Video Intercom
Depth
45 mm
Height
89 mm
Weight (Approximate)
0.15 kg
Width
71 mm

Power Description

Maximum Operating Voltage
24 V DC

Warranty

Limited Warranty
2 Year

Miscellaneous

Additional Information
24V DC Power Supply|1-30 s Unlocking Time|12V DC at 450 mA|-10°C to +40°C Operating Temperature
Compatibility
CDVI Door Stations:
  • CDV-91 Series
  • CDV-96 Series
  • CDV-97 Series
  • CDV-DDP
Features
Add lock outputs to video entry systems, Multi-functional output device, Request-to-exit input, Supports high power locks via external PSU
