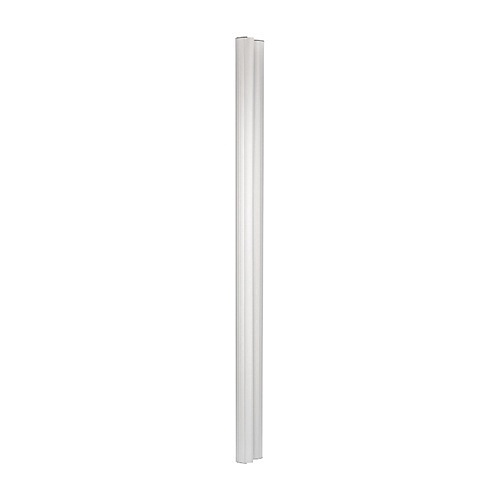

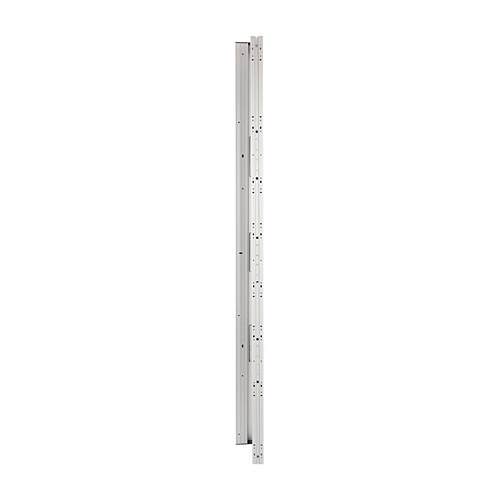

CDVI BO1200RN Architectural BO Series 2500mm Magnetic Pull Handle, 3x400kg Monitored Magnets

Brand: CDVI
ADI #:BO1200RN Model #: BO1200RN  Name: CDVI BO1200RN Architectural BO Series 2500mm Magnetic Pull Handle, 3x400kg Monitored Magnets

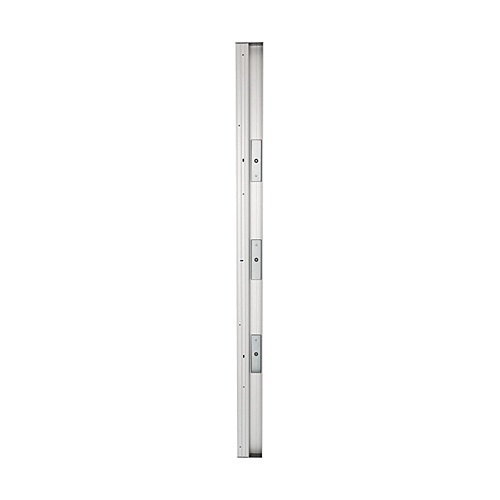

  • Architectural pull handle with 3x400kg monitored magnets
  • Fit to new doors or retrofit to existing doors
  • Ideal for high traffic sites that need high holding force and an aesthetic finish

Physical Characteristics

Application/Usage
Access Control System, College, Commercial, Door, Glass Door, Hospital, Metal Door, Public Building, School, Wooden Door
Colour
Silver
Form Factor
Surface Mount
Lock Depth
68 mm
Lock Depth (mm)
68
Lock Height
2500 mm
Lock Height (mm)
2500
Lock Width
126 mm
Lock Width (mm)
136
Material
Satin Anodised Aluminium
Weight (Approximate)
14.7 kg

Power Description

Input Current
240 mA, 480 mA
Input Current (A)
0.24, 0.48
Input Voltage
12V DC, 24V DC

Product Information

Finishing
Satin Anodized Aluminium
Holding Force
1200 kg

Warranty

Limited Warranty
10 Year

Miscellaneous

Additional Information
Standard, options RAL colour|-20°C to 70°C Temperature|12V to 24V DC Operating voltage|480mA at 12V DC/240 mA at 24V DC Current|3 x 400 kg Holding Force
Certifications & Standards
CE, DEEE, IP66, RoHS
Compatibility
Electro-Magnetic Locks
Environmentally Friendly
Yes
Features
Electromagnetic handle/Architectural handle, Retrofit Or New Build, Surface Mount Architectural Handle
