General Information

ADI Part Number

ARU-M

Brand Name

CDVI

Manufacturer

CDVI

Manufacturer Part Number

ARU-M

Packaged Quantity

1

Product Model

ARU-M

Product Name

Electric Strike

Product Series

ARU

Product Type

Electric Strikes

Technical Information

Compatible Door Frame Type

Metal, Wood

Compatible Door Lock Type

Mortise

Door Supported

Single Door

Holding Strength

750kg

Power Consumption

250A

Security Configuration

Fail Safe, Fail Secure

Certifications

RoHS Compliant

Compliant

Physical Characteristics

Application/Usage

Access Control System, Commercial, Door, Industrial, Public Building, Wooden Door

Color

Silver

Depth

38 mm

Height

124 mm (short faceplate), 165 mm (long faceplate)

Material

Stainless Steel

Weight

0.35kg

Width

43 mm

Power Description

Input Current

250mA

Input Voltage

12V DC

Product Information

Holding Force

750kg

Mount Type

Mortice

Warranty

Limited Warranty

5-Year

Miscellaneous

Additional Information

12V DC at 250mA Consumption, 12V DC Power input, tested to 200,000 operations Accepts extension lips (25mm & 50mm)

Compatibility

Wooden/Metal Doors

Features

Monitored, Reversible

Indoor/Outdoor

Indoor, Outdoor

Package Contents

Long and short faceplate
Full fixing kit for metal doors

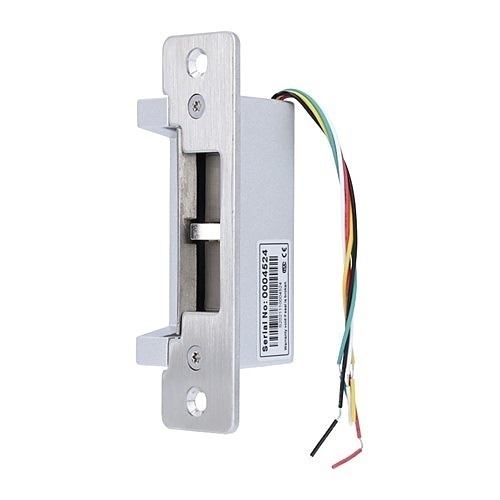

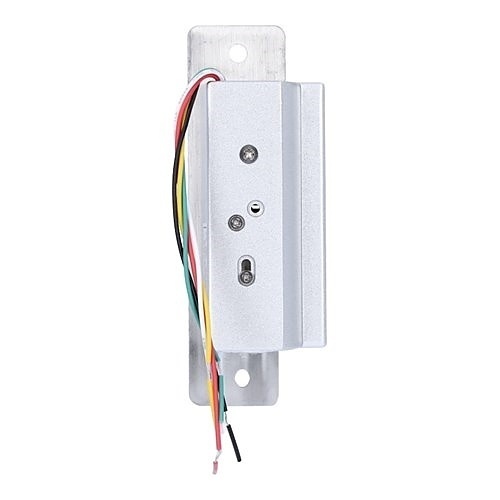

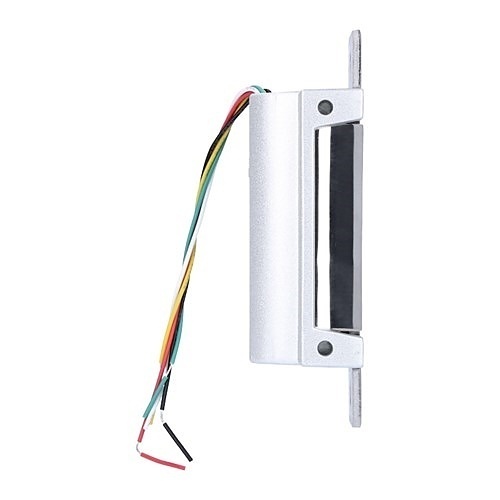

CDVI ARU-M ANSI-Style Electric Strike, 12VDC, Monitored
