General Information

ADI Part Number

8.0C-H6X-DO2-IR

Brand Name

Avigilon Unity

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

8.0C-H6X-DO2-IR

Product Line

H6X

Product Model

8.0C-H6X-DO2-IR

Product Name

H6X 8.0C-H6X-DO2-IR Network Camera

Product Series

H6X

Product Type

Network Camera

weight

2.01 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Horizontal: (16:9) 15° - 42°(4:3) 11° - 31°, Vertical: (16:9) 9° - 23° (4:3) 9° - 23°

Lens Type

Varifocal

Maximum Aperture

f/1.7

Maximum Frame Rate

30 fps

Minimum Focal Length

10.9mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.265, MJPEG

Video Resolution

3840 x 2160

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

70 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

65°C

Minimum Operating Temperature

-50°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/7.5 Second

Minimum Illumination

0.008 lux

Shortest Shutter Speed

1/15000 Second

Interfaces/Ports

HDMI

No

Network (RJ-45)

Yes

Lens

Focal Length

10.9-29 mm

Lens Included

Yes

Maximum Focal Length

29 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Depth

182 mm

Durability

Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant

Form Factor

Dome

Height

190 mm

Power Description

Input Voltage

12V DC, 24V DC

Product Information

Mount Type

Pendant Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

AI Analytics, Back Light Compensation (BLC), Day/Night, HTTPS Encryption, Human Detection, Ingress Protection, Password Protection, Privacy Masking, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10, IK11

Indoor/Outdoor

Outdoor

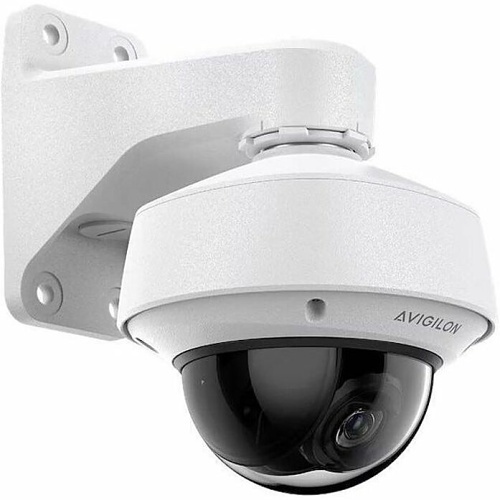

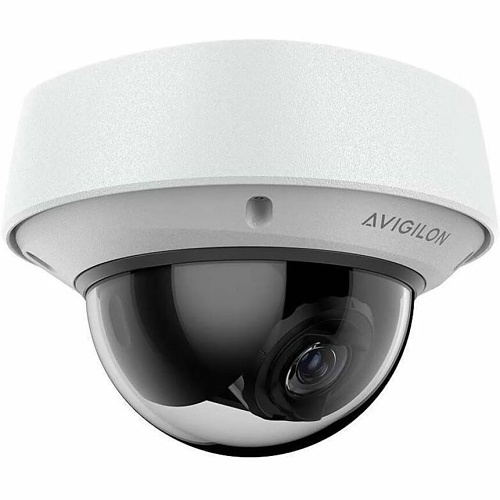

Avigilon Unity 8.0C-H6X-DO2-IR 8MP Outdoor IR Dome Camera, 10.9-29 mm Fixed Lens, IK10/11, IP66/67, White
