General Information

ADI Part Number

4.0CH5AIRPTZDP36WP

Brand Name

Avigilon Unity

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

4.0C-H5A-IRPTZ-DP36-WP

Product Line

H5A

Product Model

4.0C-H5A-IRPTZ-DP36-WP

Product Name

H5A IR PTZ CAMERA

Product Series

H5A

Product Type

PTZ Security Cameras

weight

6.76 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Horizontal: 69.7°-2.2°

Lens Type

Zoom

Maximum Aperture

f/2.0

Maximum Frame Rate

30 fps

Minimum Focal Length

4.4mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

20x

Video Formats

H.264, H.265

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

150 m

Certifications

Ingress Protection Rating

IP66, IP67, IP68

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

2688 x 1512

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/30 Second

Minimum Illumination

0.02 lux

Shortest Shutter Speed

1/30000 Second

Interfaces/Ports

HDMI

No

Network (RJ-45)

Yes

Lens

Focal Length

4.4-88mm

Lens Included

Yes

Maximum Focal Length

88 mm

Minimum Aperture

f/3.8

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Corrosion Resistant, Dust Resistant, Impact Resistant, Water Resistant

Form Factor

PTZ

Height

364 mm

Power Description

Input Voltage

24V AC, 24V DC

Product Information

Diameter

250 mm

Mount Type

Pendant Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

Built-in IR LED, Day/Night, Defog, Digital Wide Dynamic Range (D-WDR), Human Detection, Ingress Protection, Motion Detection, PTZ, Vehicle Detection, White Balance

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

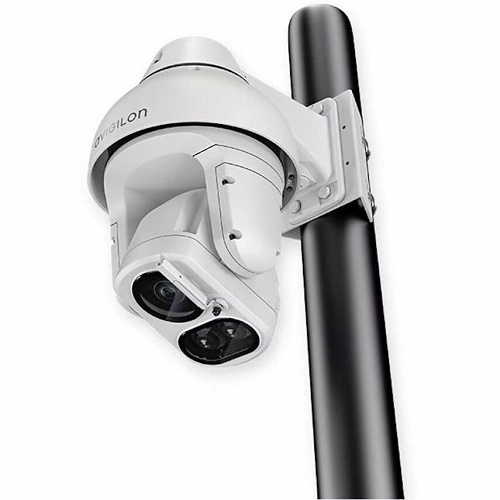

Avigilon Unity 4.0C-H5A-IRPTZ-DP36-WP 4MP 36x Optical Zoom IP PTZ Camera, 4.4-88mm Lens, IR 150M, IP68
