General Information

ADI Part Number

4.0C-H6A-BO2-IR

Brand Name

Avigilon Unity

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

4.0C-H6A-BO2-IR

Product Line

H6A

Product Model

4.0C-H6A-BO2-IR

Product Name

4.0C-H6A-BO2-IR Bullet Camera

Product Type

Camera

weight

2.92 kg

Technical Information

Effective Camera Resolution

4MP

Field of View

Horizontal: 2.9° to 62.5° Vertical: 2.2° to 47°

Maximum Aperture

f/1.4

Minimum Focal Length

6.9mm

Night Vision

Yes

Night Vision Type

Infrared

Video Resolution

1920 x 1080

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

65°C

Minimum Operating Temperature

-50°C

Operating Humidity

0-100%

Exposure

Minimum Illumination

0.004 lux|0.01 lux

Lens

Focal Length

6.9-214.6mm

Lens Included

Yes

Maximum Focal Length

214.6 mm

Physical Characteristics

Color

White

Form Factor

Bullet

Height

138 mm

Width

137 mm

Power Description

Input Voltage

12-24V DC

Product Information

Length

407 mm

Mount Type

Backbox Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

CE, RoHS

Environmentally Friendly

Yes

Features

AdaptAI Video Analytics, Audio Analytics and Recording, Dynamic Privacy Masking, Low-Light Clarity, Outdoor Ready Design

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

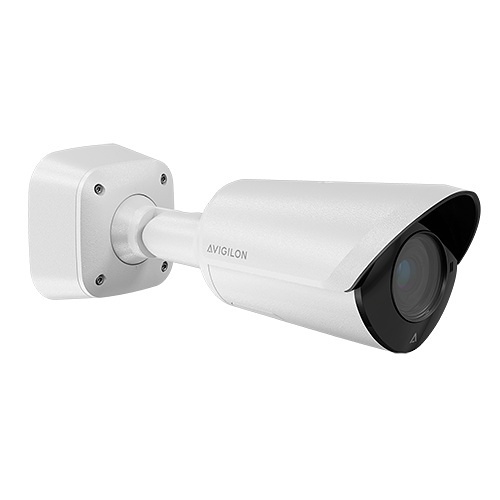

Avigilon Unity 4.0C-H6A-BO2-IR 4MP IR Bullet Camera with Microphone, 6.9-214.6mm Lens, White
