General Information

ADI Part Number

316400661

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2XM6522G1-I/ND(2.8MM)

Product Model

DS-2XM6522G1-I/ND(2.8MM)

Product Name

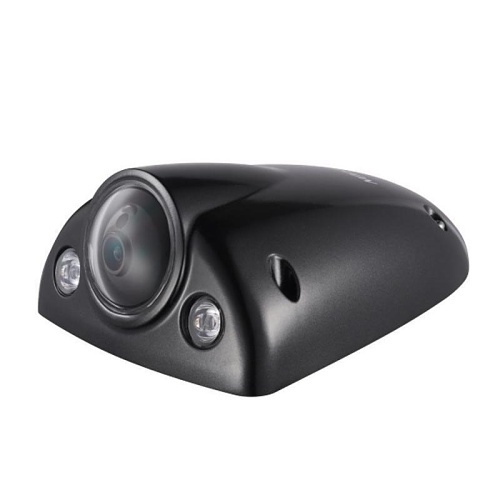

Mobile network camera

Product Type

Network Camera

weight

905 g

Technical Information

Effective Camera Resolution

2MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.264+, H.265, H.265+, MJPEG

Video Resolution

1920 x 1080

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP68, IP69K

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

75°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.01 lux|0 lux

Shortest Shutter Speed

1/100000 Second

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.8 mm

Physical Characteristics

Color

Black

Power Description

Input Voltage

9-36V

Product Information

Mount Type

M12 Mount

Miscellaneous

Impact Protection Rating

IK10
