General Information

ADI Part Number

311327102

Brand Name

Hikvision

Manufacturer

Hangzhou Hikvision Digital Technology Co., Ltd

Manufacturer Part Number

DS-2CV2141G2-IDW(W)(2.8mm)

Product Model

DS-2CV2141G2-IDW(W)(2.8mm)

Product Name

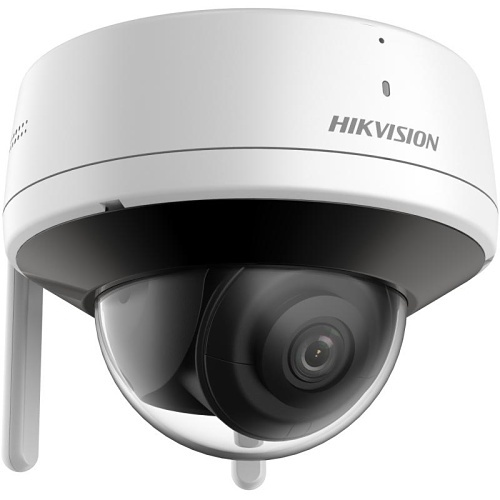

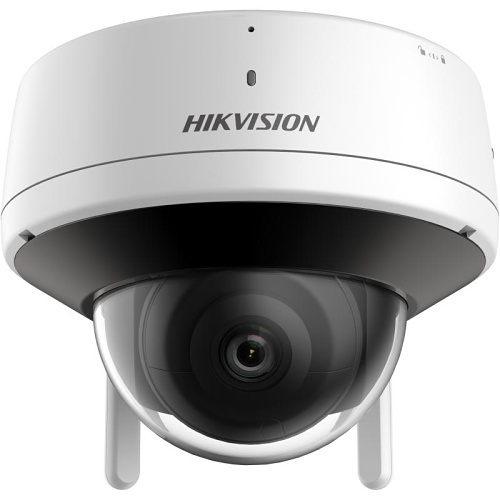

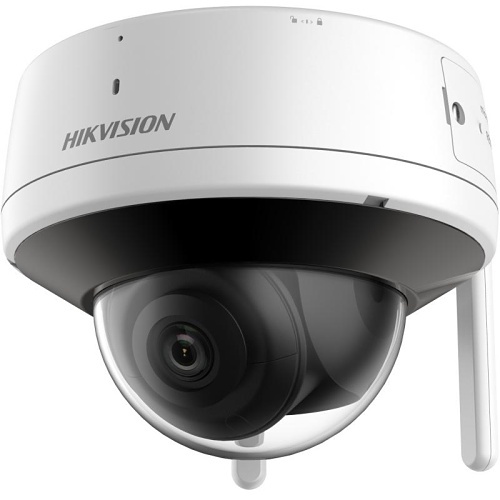

4 MP EXIR Fixed Dome Network Camera

Product Series

Cable-Free

Product Type

Network Camera

weight

593 g

Technical Information

Connectivity Technology

Wireless

Effective Camera Resolution

4MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Video Formats

H.264, H.265

Wide Dynamic Range

Digital WDR

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2560 x 1440

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95% (Non-Condensing)

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.005 lux

Shortest Shutter Speed

1/100000 Second

Lens

Focal Length

2.8 mm

Maximum Focal Length

2.8 mm

Physical Characteristics

Color

White

Power Description

Input Voltage

12V DC

Product Information

Mount Type

M12 Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE-RoHS, WEEE

Environmentally Friendly

Yes

Indoor/Outdoor

Outdoor

Hikvision DS-2CV2141G2-IDW(W)(2.8mm) Cable-Free Series 4MP Outdoor Audio Fixed Dome IP Camera, 2.8mm Lens, IP66, White
