General Information

ADI Part Number

311323714

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

iDS-2CD7T47G0-XHS(4mm)

Product Line

DarkfighterS

Product Model

iDS-2CD7T47G0-XHS

Product Name

4 MP DarkfighterS DeepinView Fixed Bullet Network Camera

Product Series

DeepinView

Product Type

Network Camera

weight

1.37 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

horizontal FOV 94.7°, vertical FOV 49.4°, diagonal FOV 112.6°

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

30 fps

Minimum Focal Length

4mm

Night Vision

Yes

Night Vision Type

Infrared/Color

Video Resolution

1280 x 720

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1 Second

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

4 mm

Physical Characteristics

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

110 mm

Storage

Storage Type

Memory Card

Video

Analog Video Signal Format

CVBS

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Day/Night, Defog, Highlight Compensation (HLC), Human Detection, Motion Detection, Privacy Masking, Region of Interest, Tampering Alarm, Vehicle Detection

Impact Protection Rating

IK10

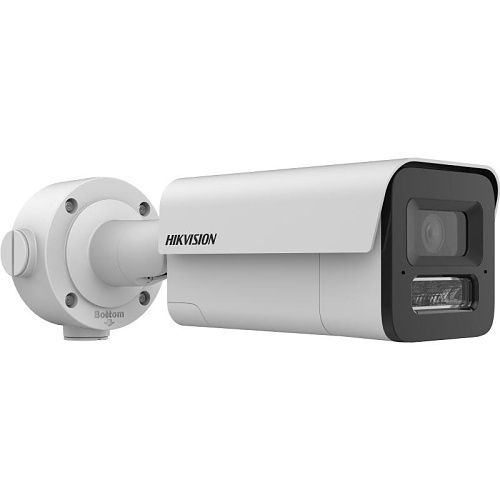

Hikvision iDS-2CD7T47G0-XHS(4mm) DarkfighterS DeepinView Series 4MP Fixed Bullet IP Camera, 2.8 Lens
