General Information

ADI Part Number

311323712

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

iDS-2CD7T47G0-XHS(2.8mm)

Product Line

DarkfighterS

Product Model

iDS-2CD7T47G0-XHS

Product Name

4 MP DarkfighterS Fixed Bullet Network Camera

Product Series

DeepinView

Product Type

Network Camera

weight

1.37 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

horizontal FOV 111.0°, vertical FOV 57.6°, diagonal FOV 138.4°

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1 Second

Minimum Illumination

Color: 0.0003 Lux at (F1.0, AGC ON),B/W: 0.0001 Lux at (F1.0, AGC ON),B/W: 0 Lux with IR

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

110 mm

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

Audio Compression, Cross Line Detection, Day/Night, Human Detection, Intrusion Detection, Motion Detection, SD Card Local Storage, Vehicle Detection, Video Management System, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

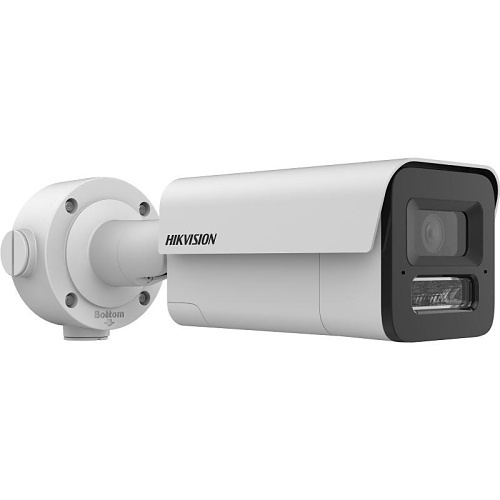

Hikvision iDS-2CD7T47G0-XHS(2.8mm) DarkfighterS DeepinView Series 4MP Fixed Bullet IP Camera, 2.8 Lens
